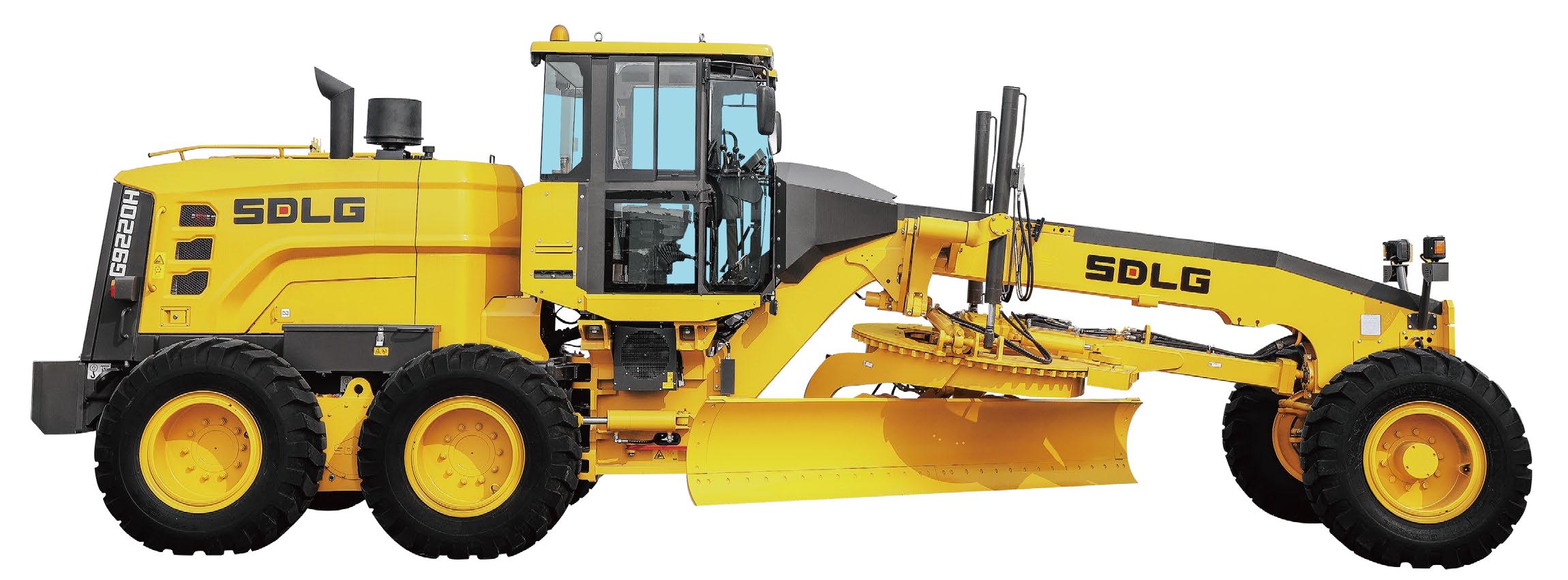

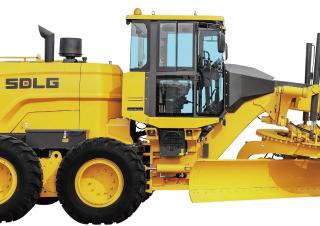

G9220H SDLG G9220H Specifications & Technical Data (2026—2026)

Weight: 16.5t – Standard tyres: 17.5-25-16PR-E-3/L-3 – Transport length: 9.235m – Transport width: 2.71m – Transport height: 3.24m – Mouldboard width: 4.267m

Technical specs - G9220H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16.5 t
Standard tyres
17.5-25-16PR-E-3/L-3
Transport length
9.235 m
Transport width
2.71 m
Transport height
3.24 m
Mouldboard width
4.267 m
Travel speed
38.4 km/h
Turning radius outside
7.6 m
Model series
H
Engine manuf.
Deutz
Engine type
BFM8-22T2
Engine power
169 kW
Revolutions at max torque
1600 rpm
Max. torque
900 Nm
Emission level
China Stage II

More technical details, like: steering mode, drive, front blade width, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
