    Lectura specs Construction machinery Graders Graders SDLG SDLG G9220AWD specifications

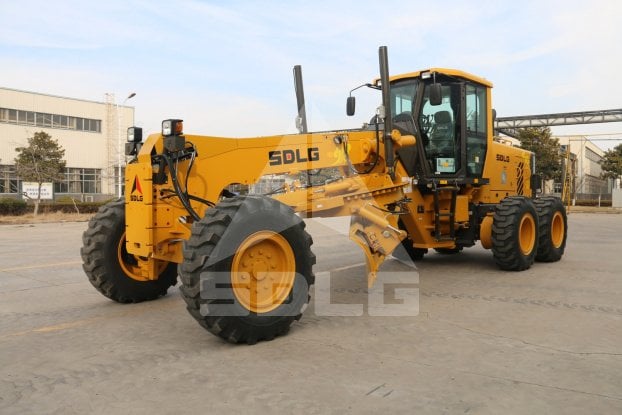

    SDLG G9220AWD Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 16.75t – Transport length: 9.235m – Transport width: 2.76m – Transport height: 3.24m – Mouldboard width: 4.267m – Travel speed : 39km/h

    Technical specs - G9220AWD SDLG

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 16.75 t
    • Transport length 9.235 m
    • Transport width 2.76 m
    • Transport height 3.24 m
    • Mouldboard width 4.267 m
    • Travel speed 39 km/h
    • Turning radius outside 7.6 m
    • Engine manuf. Deutz
    • Engine type BF6M1013EC
    • Engine power 165 kW

    More technical details, like: standard tyres, steering mode, drive, front blade width, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin and central blade

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Front blade
    • Rear ripper
    • Aircondition
