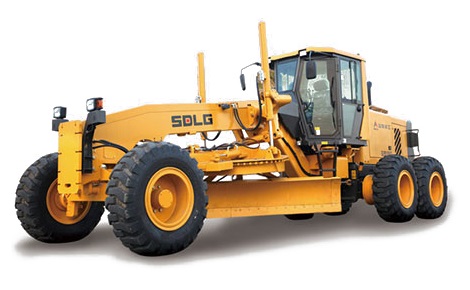

    SDLG G9180 Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 15.3t – Transport length: 8.975m – Transport width: 2.71m – Transport height: 3.24m – Mouldboard width: 3.962m – Travel speed : 38km/h

    Technical specs - G9180 SDLG

    Specification

    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 15.3 t
    • Transport length 8.975 m
    • Transport width 2.71 m
    • Transport height 3.24 m
    • Mouldboard width 3.962 m
    • Travel speed 38 km/h
    • Turning radius outside 7.6 m
    • Engine manuf. Weichai
    • Engine type N/A

    More technical details, like: standard tyres, steering mode, drive, front blade width, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin and central blade

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Front blade
    • Rear ripper
    • Aircondition

    Carbon footprint calculator for Graders

    See the ERA equipment CO2 Calculator to find out the CO2 footprint per hour of use of the SDLG G9180 or alternative Graders.

    The footprint evaluation can be carried out for different biofuel scenarios or other variables.

    or visit the ERA Equipment CO2 Calculator to find out how to reduce your carbon footprint.

    service provided by ERA

    Solutions

    The all-in-one 3D machine control solution for your entire fleet

    Due to the visualisation of the required result, the machine control brings many benefits:

    • Accuracy and fast goal achievements
    • Safety increases – all is managed by the machine operator
    • Lower fuel consumption – environmental friendliness
    • Limiting project delays by significantly reducing the risk of accidental damage to utility or pipe
    • Simpler documentation activities with data exported in CSV format

    Find out more details about how the machine control solution can help you in your daily routine on our website or come visit us at bauma.

    Hexagon teaser
    Ein Service von: Hexagon

    The auction format is a winner in today's market

    When the market for new equipment is tight, the market for used equipment is booming. As the supply is low and the demand high - it is a win/win situation for both buyers and sellers on auction sites.

    Learn more about the benefits of trading via auction and discover all the auctions to place a bid on right now!

    Blinto
    Find out more
    Service provided by: Blinto

    Compare SDLG G9180 with similar Graders

    Press 1 image

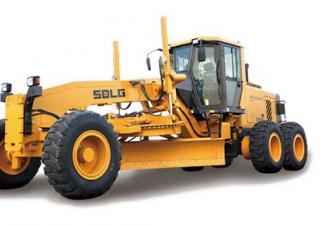

    SDLG G9180
