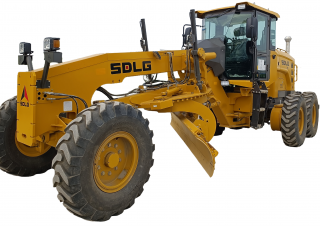

G9138H SDLG G9138H Specifications & Technical Data (2026—2026)

Weight: 13.275t – Transport length: 8.285m – Transport width: 2.471m – Transport height: 3.41m – Mouldboard width: 6.658m – Travel speed: 40km/h

Technical specs - G9138H SDLG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
13.275 t
Transport length
8.285 m
Transport width
2.471 m
Transport height
3.41 m
Mouldboard width
6.658 m
Travel speed
40 km/h
Turning radius outside
6.5 m
Model series
H
Engine manuf.
Weichai
Engine type
WP6G140E313
Engine power
105 kW
Revolutions at max torque
1600 rpm
Max. torque
660 Nm
Emission level
Tier III (Bra)

More technical details, like: standard tyres, steering mode, drive, front blade width, dimension lxwxh, displacement, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
