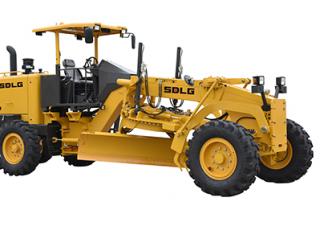

    SDLG G9138 Specifications & Technical Data (2018-2022)

    Rate this machine now!

    Weight: 12.1t – Drive: H – Transport length: 8.12m – Transport width: 2.41m – Transport height: 3.2m – Mouldboard width: 3.048m

    Technical specs - G9138 SDLG


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 12.1 t
    • Drive H
    • Transport length 8.12 m
    • Transport width 2.41 m
    • Transport height 3.2 m
    • Mouldboard width 3.048 m
    • Travel speed 34 km/h
    • Turning radius outside 6.5 m
    • Engine manuf. Weichai
    • Engine type N/A

    More technical details, like: standard tyres, steering mode, front blade width, engine power, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

    Basic model with ROPS cabin and central blade

    Special equipment

    • Diesel particulate filter
    • Bilateral levelling automatic
    • Front blade
    • Rear ripper
    • Aircondition
