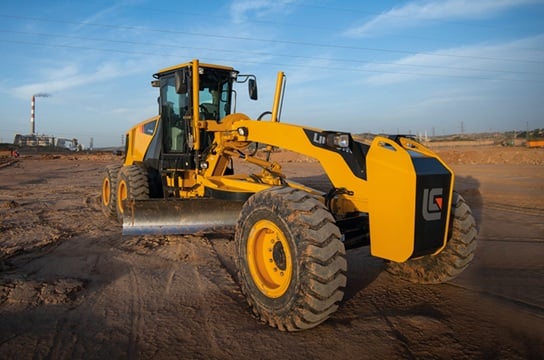

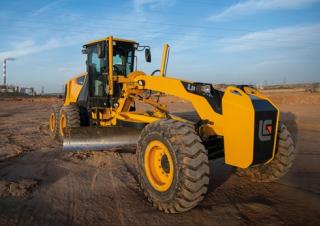

4140D Liugong 4140D Specifications & Technical Data (2021—2026)

Weight: 12.6t – Standard tyres: 13.00-24 – Transport length: 8.44m – Transport width: 2.45m – Transport height: 3.35m – Mouldboard width: 3.66m

Graders Liugong 4140D

Visit Liugong live at

Technical specs - 4140D Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
12.6 t
Standard tyres
13.00-24
Transport length
8.44 m
Transport width
2.45 m
Transport height
3.35 m
Mouldboard width
3.66 m
Travel speed
42 km/h
Turning radius outside
6.9 m
Model series
D
Engine manuf.
Cummins
Engine type
6BTAA5.9-C160
Engine power
118 kW
Max. torque
670 Nm
No. of cylinders
6
Emission level
Tier 2/Stage II

More technical details, like: steering mode, drive, front blade width, dimension lxwxh, displacement, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
No
