24M Caterpillar 24M Specifications & Technical Data (2016—2019)

Weight: 65.84t – Standard tyres: 29.5 R 29 – Steering mode: AL – Drive: A – Transport length: 16.102m – Transport width: 4.28m

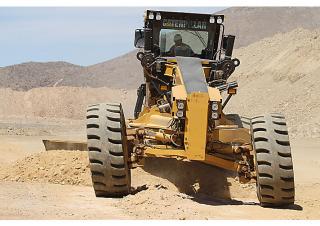

Graders Caterpillar 24M

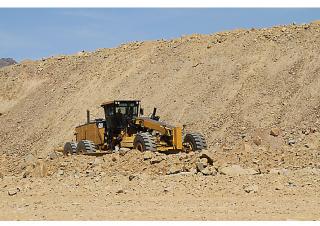

Graders Caterpillar 24M
Graders Caterpillar 24M
Graders Caterpillar 24M
Graders Caterpillar 24M
Graders Caterpillar 24M
Graders Caterpillar 24M
Graders Caterpillar 24M

Technical specs - 24M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
65.84 t
Standard tyres
29.5 R 29
Steering mode
AL
Drive
A
Transport length
16.102 m
Transport width
4.28 m
Transport height
4.452 m
Mouldboard width
7.3 m
Travel speed
40.9 km/h
Engine manuf.
Caterpillar
Engine type
C18 Acert
Engine power
397 kW
Displacement
18.1 l
Cylinder bore x stroke
145x183 mm
Emission level
Tier 4 f

More technical details, like: front blade width, turning radius outside, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter
No
Bilateral levelling automatic
No
Front blade
No
Rear ripper
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar 24M FAQ

When was the Caterpillar 24M manufactured?

The Caterpillar 24M was manufactured from 2016 to 2019.

How much does the Caterpillar 24M weigh?

The Caterpillar 24M weighs 65.84 tons.

What are the transport dimensions of the Caterpillar 24M grader?

The Caterpillar 24M grader has a transport length of 16.1 meters, a transport width of 4.28 meters, and a transport height of 4.45 meters.

What is the travel speed of the Caterpillar 24M grader?

The Caterpillar 24M grader has a travel speed of 40.9 km/h.

What are the undercarriage specifications of the Caterpillar 24M grader?

The Caterpillar 24M grader has an all-wheel drive system and uses standard tyres sized 29.5 R 29.

What is the steering mode of the Caterpillar 24M grader?

The Caterpillar 24M grader has an all-wheel steering mode.

What is the mouldboard width of the Caterpillar 24M grader?

The Caterpillar 24M grader has a mouldboard width of 7.3 meters.

How much is a Caterpillar 24M Grader (2016u20132019) worth?

The residual value of the Caterpillar 24M depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
