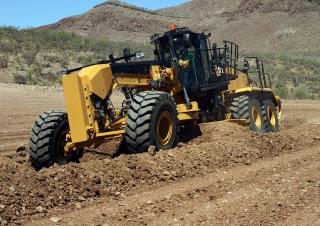

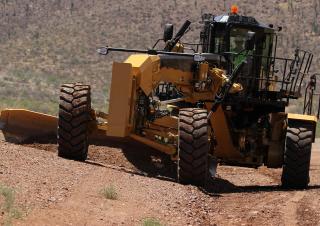

16M3 Caterpillar 16M3 Specifications & Technical Data (2015—2026)

Weight: 32.41t – Standard tyres: 23.5 R 25 – Steering mode: VKL – Drive: T – Transport length: 10.59m – Transport width: 3.41m

16M3

Years of manufacture: 2015—2026

Data sheet
Buy & Rent
Spare parts
Transport
News

Technical specs - 16M3 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 32.41 t

Standard tyres: 23.5 R 25

Steering mode: VKL

Drive: T

Transport length: 10.59 m

Transport width: 3.41 m

Transport height: 3.72 m

Mouldboard width: 4.9 m

Travel speed: 51.7 km/h

Turning radius outside: 9.3 m

Engine manuf.: Caterpillar

Engine type: C13 Acert

Engine power: 216 kW

Displacement: 12.5 l

Max. torque: 1771 Nm

No. of cylinders: 6

Cylinder bore x stroke: 130 x 157 mm

Emission level: Tier 4. IV

More technical details, like: front blade width, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: Yes
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: Yes

Download specalog and datasheets (PDF)

16M3 Caterpillar Specification for Europe (EN)

Caterpillar 16M3 FAQ

When was the Caterpillar 16M3 manufactured?

The Caterpillar 16M3 was first produced in 2015.

How much does the Caterpillar 16M3 grader weigh?

The Caterpillar 16M3 grader weighs 32.41 tons.

What are the transport dimensions of the Caterpillar 16M3 grader?

The Caterpillar 16M3 grader has a transport length of 10.59 meters, a transport width of 3.41 meters, and a transport height of 3.72 meters.

What is the travel speed of the Caterpillar 16M3 grader?

The Caterpillar 16M3 grader has a travel speed of 51.7 km/h.

What are the undercarriage specifications of the Caterpillar 16M3 grader?

The Caterpillar 16M3 grader has a tandem drive and uses standard tyres sized 23.5 R 25.

What are the maneuverability specifications of the Caterpillar 16M3 grader?

The Caterpillar 16M3 grader has an outside turning radius of 9.3 meters and features front and articulated-frame steering.

What is the mouldboard width of the Caterpillar 16M3 grader?

The Caterpillar 16M3 grader has a mouldboard width of 4.9 meters.

How much is a Caterpillar 16M3 Grader (2015u20132025) worth?

The residual value of the Caterpillar 16M3 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
