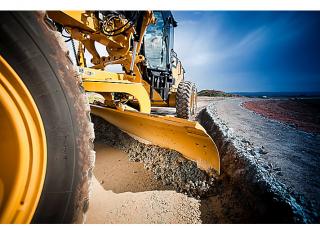

160M AWD Caterpillar 160M AWD Specifications & Technical Data (2017—2019)

Weight: 20.61t – Standard tyres: 14.00R24 – Steering mode: VKL – Drive: A – Transport length: 8.75m – Transport width: 2.59m

160M AWD

Years of manufacture: 2017—2019

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 160M AWD Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 20.61 t

Standard tyres: 14.00R24

Steering mode: VKL

Drive: A

Transport length: 8.75 m

Transport width: 2.59 m

Transport height: 3.31 m

Mouldboard width: 3.7 m

Travel speed: 47.4 km/h

Turning radius outside: 7.6 m

Engine manuf.: Caterpillar

Engine type: C9 Acert

Engine power: 200 kW

Displacement: 8.8 l

Revolutions at max torque: 1000 rpm

Max. torque: 1344 Nm

No. of cylinders: 6

Cylinder bore x stroke: 112x149 mm

Emission level: Tier 3 / EU IIIA

More technical details, like: front blade width, model series, dimension lxwxh are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar 160M AWD FAQ

When was the Caterpillar 160M AWD manufactured?

The Caterpillar 160M AWD was manufactured from 2017 to 2019.

How much does the Caterpillar 160M AWD weigh?

The Caterpillar 160M AWD weighs 20.61 tons.

What are the transport dimensions of the Caterpillar 160M AWD grader?

The Caterpillar 160M AWD grader has a transport length of 8.75 meters, a transport width of 2.59 meters, and a transport height of 3.31 meters.

What is the travel speed of the Caterpillar 160M AWD grader?

The Caterpillar 160M AWD grader has a travel speed of 47.4 km/h.

What are the undercarriage specifications of the Caterpillar 160M AWD grader?

The Caterpillar 160M AWD grader has an all-wheel drive system and uses standard tyres sized 14.00R24.

What are the maneuverability specifications of the Caterpillar 160M AWD grader?

The Caterpillar 160M AWD grader has a turning radius of 7.6 meters and features front and articulated-frame steering.

What is the mouldboard width of the Caterpillar 160M AWD grader?

The Caterpillar 160M AWD grader has a mouldboard width of 3.7 meters.

How much is a Caterpillar 160M AWD Grader (2017u20132019) worth?

The residual value of the Caterpillar 160M AWD depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
