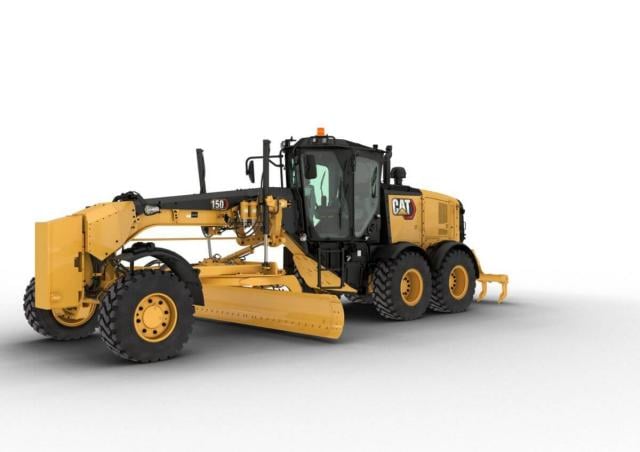

150 AWD Caterpillar 150 AWD Specifications & Technical Data (2021—2026)
Technical specs - 150 AWD Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 19.94 t
- Transport length
- 10.14 m
- Transport width
- 2.51 m
- Transport height
- 3.31 m
- Mouldboard width
- 3.7 m
- Travel speed
- 46.6 km/h
- Turning radius outside
- 7.8 m
- Engine manuf.
- Caterpillar
- Engine type
- C9.3
- Engine power
- 149 kW
- Displacement
- 9.3 l
- Max. torque
- 1247 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 115x149 mm
- Emission level
- U.S. EPA Tier 4 Final / EU V
More technical details, like: standard tyres, steering mode, drive, front blade width, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
Yes
- Rear ripper
-
Yes
- Aircondition
-
Yes
