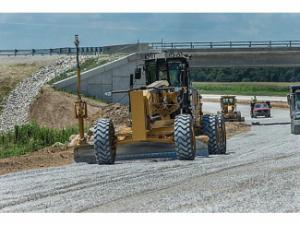

14M Caterpillar 14M Specifications & Technical Data (2007—2017)

Weight: 24.37t – Standard tyres: 20.5R25 – Transport length: 9.35m – Transport width: 2.8m – Transport height: 3.75m – Mouldboard width: 4.3m

14M

Years of manufacture: 2007—2017

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 14M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 24.37 t

Standard tyres: 20.5R25

Transport length: 9.35 m

Transport width: 2.8 m

Transport height: 3.75 m

Mouldboard width: 4.3 m

Travel speed: 50.4 km/h

Turning radius outside: 7.9 m

Engine manuf.: Caterpillar

Engine type: C11 Acert VHP

Engine power: 193 kW

Displacement: 11.1 l

Max. torque: 1422 Nm

No. of cylinders: 6

Cylinder bore x stroke: 130 x 140 mm

More technical details, like: steering mode, drive, front blade width, model series, dimension lxwxh, revolutions at max torque, emission level, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, transmission manufacturer, transmission model, tyre - size, service brake - type, service brake - location, wheelbase, length - shovel on ground, height - over cab, ground clearance, width - over tyres, shovel - type, shovel - width, full lift dump height, full lift reach, loader - arm type, loader - geometry, dump angle - at dump, dump angle - maximum, height - pivot pin, full lift dump height - maximum, height - maximum, dig depth, turning radius - over shovel, fuel tank, heaped capacity, shovel capacity - smallest, shovel capacity - largest, straight tipping load, full turn tipping load, breakout - shovel, breakout - shovel, ride control system, oscillation - rear axle, operating weight are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: No
Rear ripper: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar 14M FAQ

When was the Caterpillar 14M grader manufactured?

The Caterpillar 14M grader was manufactured from 2007 to 2017.

How much does the Caterpillar 14M grader weigh?

The Caterpillar 14M grader weighs 24.37 tons.

What are the transport dimensions of the Caterpillar 14M grader?

The Caterpillar 14M grader has a transport length of 9.35 meters, a transport width of 2.8 meters, and a transport height of 3.75 meters.

What is the travel speed of the Caterpillar 14M grader?

The Caterpillar 14M grader has a travel speed of 50.4 km/h.

What is the standard tyre size of the Caterpillar 14M grader?

The Caterpillar 14M grader has standard tyres sized 20.5R25.

What is the turning radius of the Caterpillar 14M grader?

The Caterpillar 14M grader has an outside turning radius of 7.9 meters.

What is the mouldboard width of the Caterpillar 14M grader?

The Caterpillar 14M grader has a mouldboard width of 4.3 meters.
