140 GC Caterpillar 140 GC Specifications & Technical Data (2019—2026)

Weight: 16.62t – Standard tyres: 14.0R24 – Transport length: 10.322m – Transport width: 2.428m – Transport height: 3.777m – Mouldboard width: 3.7m

140 GC

Years of manufacture: 2019—2026

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 140 GC Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.62 t

Standard tyres: 14.0R24

Transport length: 10.322 m

Transport width: 2.428 m

Transport height: 3.777 m

Mouldboard width: 3.7 m

Travel speed: 41.7 km/h

Engine manuf.: Caterpillar

Engine type: C7.1

Engine power: 131 kW

Displacement: 7.01 l

Revolutions at max torque: 1500 rpm

Max. torque: 889 Nm

No. of cylinders: 6

Cylinder bore x stroke: 105x135 mm

Emission level: U.S. EPA Tier 3/EU IIIA

More technical details, like: steering mode, drive, front blade width, turning radius outside, model series, dimension lxwxh are available in the full technical specs.

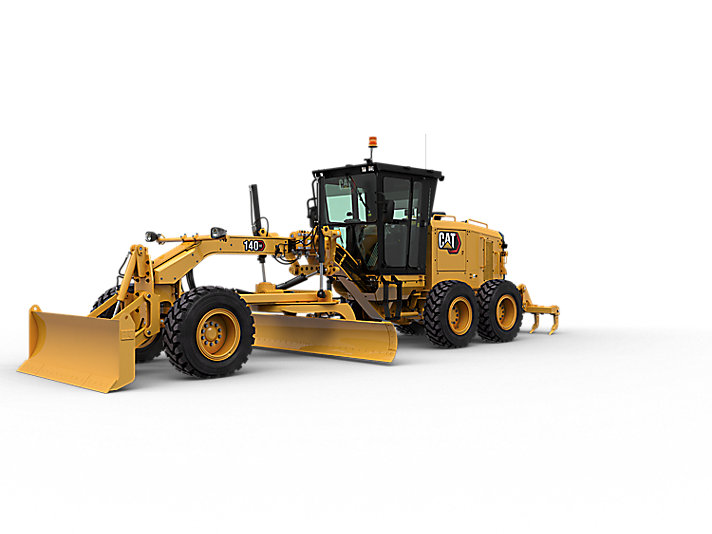

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: Yes
Rear ripper: Yes
Aircondition: Yes

Download specalog and datasheets (PDF)

140 GC Caterpillar Specification for zl 802 (EN)

Caterpillar 140 GC FAQ

When was the Caterpillar 140 GC manufactured?

The Caterpillar 140 GC was first produced in 2019.

How much does the Caterpillar 140 GC weigh?

The Caterpillar 140 GC weighs 16.62 tons.

What are the transport dimensions of the Caterpillar 140 GC grader?

The Caterpillar 140 GC grader has a transport length of 10.32 meters, a transport width of 2.43 meters, and a transport height of 3.78 meters.

What is the travel speed of the Caterpillar 140 GC grader?

The Caterpillar 140 GC grader has a travel speed of 41.7 km/h.

What are the undercarriage tyre specifications of the Caterpillar 140 GC grader?

The Caterpillar 140 GC grader is equipped with standard tyres sized 14.0R24.

What is the mouldboard width of the Caterpillar 140 GC grader?

The Caterpillar 140 GC grader has a mouldboard width of 3.7 meters.
