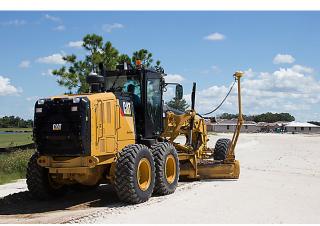

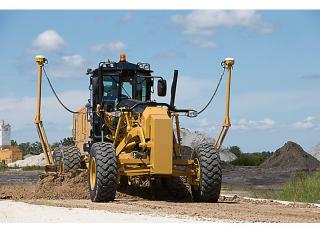

12M3 AWD Caterpillar 12M3 AWD Specifications & Technical Data (2017—2019)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
.jpeg)
Technical specs - 12M3 AWD Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 20.24 t
- Standard tyres
- 14.0R24
- Transport length
- 8.91 m
- Transport width
- 2.51 m
- Transport height
- 3.31 m
- Mouldboard width
- 3 m
- Travel speed
- 46.6 km/h
- Turning radius outside
- 7.8 m
- Engine manuf.
- Caterpillar
- Engine type
- C9.3 Acert
- Engine power
- 133 kW
- Displacement
- 9 l
- Max. torque
- 1247 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 115 x 149 mm
- Emission level
- U.S. EPA Tier 4 Final / EU V
More technical details, like: steering mode, drive, front blade width, model series, dimension lxwxh, revolutions at max torque are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
No
- Aircondition
-
Yes
Download specalog and datasheets (PDF)
