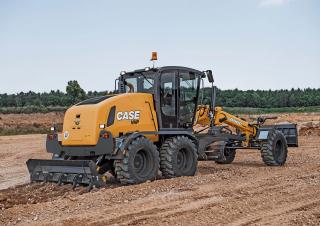

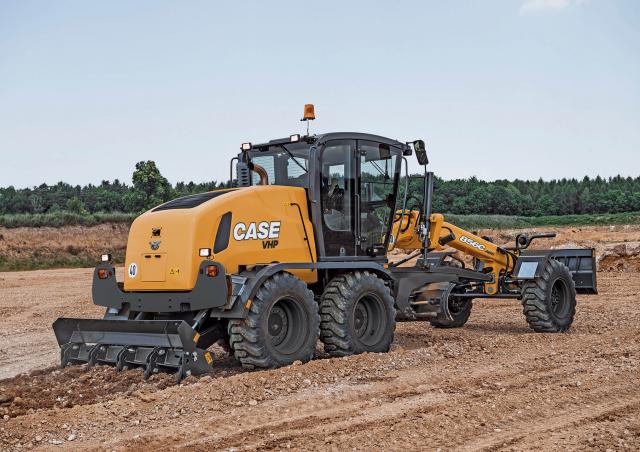

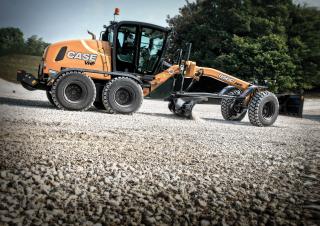

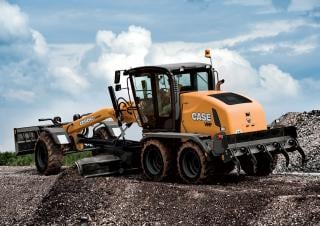

856C AWD

Years of manufacture: 2020—2023

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 856C AWD Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 16.7 t

Standard tyres: 17.5 25 EM

Steering mode: VKL

Drive: A

Transport length: 8.6 m

Transport width: 2.549 m

Transport height: 3.674 m

Mouldboard width: 3.7 m

Front blade width: 2.45 m

Travel speed: 38 km/h

Turning radius outside: 8 m

Model series: C

Engine manuf.: FPT

Engine type: 667 TA

Engine power: 142 kW

Displacement: 6.7 l

Revolutions at max torque: 1400 rpm

Max. torque: 850 Nm

No. of cylinders: 6

Emission level: V

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: Yes
Bilateral levelling automatic: No
Front blade: Yes
Rear ripper: Yes
Aircondition: Yes

Download datasheets (PDF)

Case 856C AWD FAQ

When was the Case 856C AWD manufactured?

The Case 856C AWD was manufactured from 2020 to 2023.

How much does the Case 856C AWD grader weigh?

The Case 856C AWD grader weighs 16.7 tons.

What are the transport dimensions of the Case 856C AWD grader?

The Case 856C AWD grader has a transport length of 8.6 meters, a transport width of 2.55 meters, and a transport height of 3.67 meters.

What is the travel speed of the Case 856C AWD grader?

The Case 856C AWD grader has a travel speed of 38 km/h.

What is the fuel consumption range of the Case 856C AWD grader?

The fuel consumption range of the Case 856C AWD grader is 10 to 27 liters per hour.

What are the undercarriage specifications of the Case 856C AWD grader?

The Case 856C AWD grader has an all-wheel drive system and uses standard tyres sized 17.5 25 EM.

What are the maneuverability specifications of the Case 856C AWD grader?

The Case 856C AWD grader has an outside turning radius of 8 meters and features front and articulated-frame steering.

What are the specifications of the primary work tool on the Case 856C AWD grader?

The Case 856C AWD grader has a front blade width of 2.45 meters and a mouldboard width of 3.7 meters.
