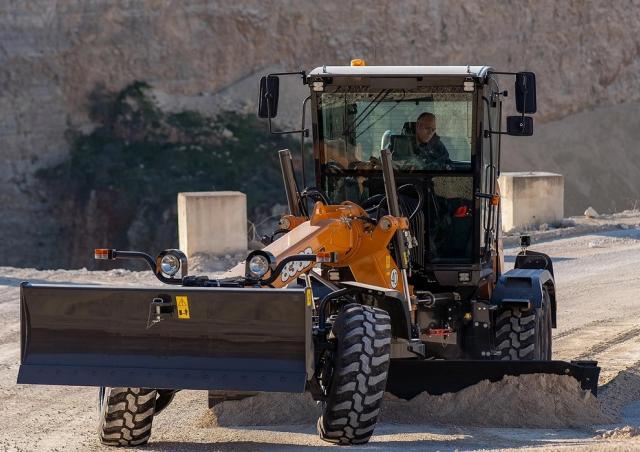

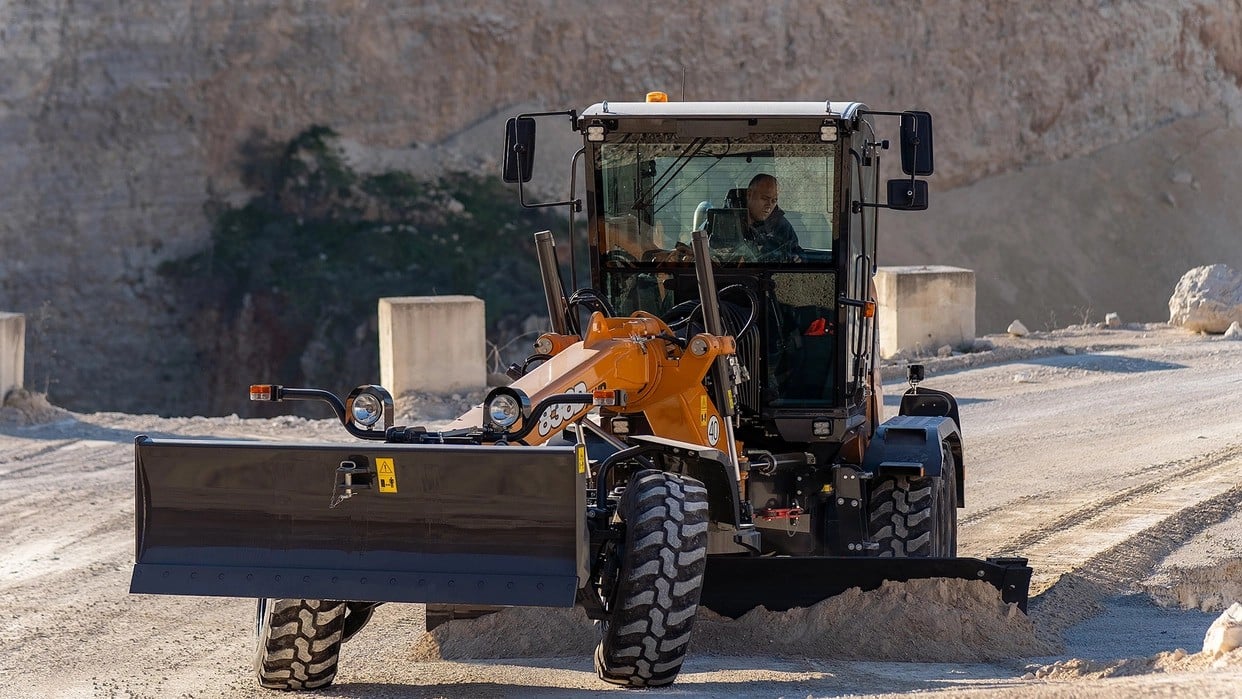

836D Case 836D Specifications & Technical Data (2024—2026)
Technical specs - 836D Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 12.5 t
- Standard tyres
- 405/70 R 20
- Steering mode
- VKL
- Drive
- T
- Transport length
- 7.697 m
- Transport width
- 2.35 m
- Transport height
- 3.586 m
- Mouldboard width
- 3.4 m
- Front blade width
- 2.35 m
- Travel speed
- 40 km/h
- Turning radius outside
- 7.3 m
- Model series
- D
- Engine manuf.
- FPT
- Engine type
- 667 TA
- Engine power
- 115 kW
- Displacement
- 6.7 l
- Revolutions at max torque
- 1400 rpm
- Max. torque
- 725 Nm
- No. of cylinders
- 6
- Emission level
- V
More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
Yes
- Bilateral levelling automatic
-
No
- Front blade
-
Yes
- Rear ripper
-
Yes
- Aircondition
-
Yes
