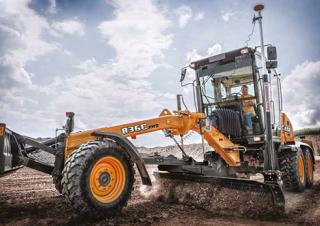

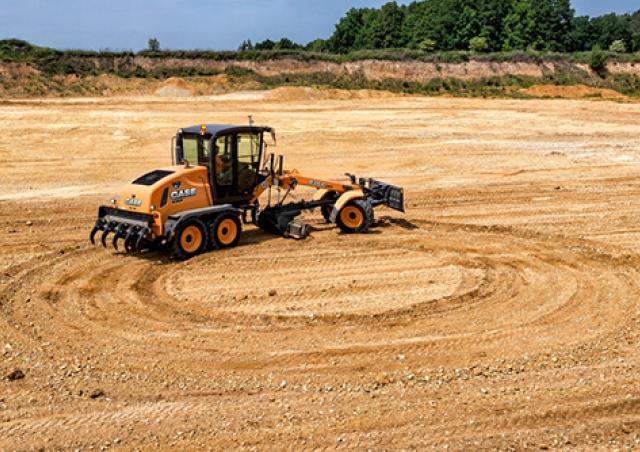

836C AWD Case 836C AWD Specifications & Technical Data (2015—2020)

Weight: 12.8t – Standard tyres: 405/70 R 20 – Drive: A – Transport length: 7.7m – Transport width: 2.35m – Transport height: 3.586m

836C AWD

Years of manufacture: 2015—2020

Data sheet
Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 836C AWD Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 12.8 t

Standard tyres: 405/70 R 20

Drive: A

Transport length: 7.7 m

Transport width: 2.35 m

Transport height: 3.586 m

Mouldboard width: 3.4 m

Front blade width: 2.35 m

Travel speed: 40 km/h

Turning radius outside: 7.6 m

Model series: C

Engine manuf.: FPT

Engine type: 667 TA

Engine power: 115 kW

Displacement: 6.7 l

Revolutions at max torque: 1400 rpm

Max. torque: 725 Nm

No. of cylinders: 6

Emission level: T 4f

More technical details, like: steering mode, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and central blade

Special equipment

Diesel particulate filter: No
Bilateral levelling automatic: No
Front blade: Yes
Rear ripper: Yes
Aircondition: Yes

Download datasheets (PDF)

Case 836C AWD FAQ

When was the Case 836C AWD manufactured?

The Case 836C AWD was manufactured from 2015 to 2020.

How much does the Case 836C AWD grader weigh?

The Case 836C AWD grader weighs 12.8 tons.

What are the transport dimensions of the Case 836C AWD grader?

The Case 836C AWD grader has a transport length of 7.7 meters, a transport width of 2.35 meters, and a transport height of 3.59 meters.

What is the travel speed of the Case 836C AWD grader?

The Case 836C AWD grader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Case 836C AWD grader?

The Case 836C AWD grader features an all-wheel drive system and standard tyres sized 405/70 R 20.

What is the turning radius of the Case 836C AWD grader?

The Case 836C AWD grader has an outside turning radius of 7.6 meters.

What are the primary work tool specifications of the Case 836C AWD grader?

The Case 836C AWD grader has a front blade width of 2.35 meters and a mouldboard width of 3.4 meters.
