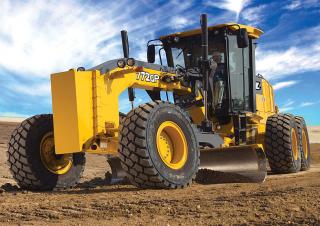

770G 4WD Bell 770G 4WD Specifications & Technical Data (2017—2026)
Technical specs - 770G 4WD Bell
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 18.78 t
- Standard tyres
- 17.5-25
- Steering mode
- KL
- Drive
- T
- Transport length
- 9.99 m
- Transport height
- 3.18 m
- Travel speed
- 45.5 km/h
- Turning radius outside
- 7.21 m
- Model series
- G
- Engine manuf.
- John Deere
- Engine type
- PowerTech™ 6090H
- Engine power
- 172 kW
- Displacement
- 9 l
- Revolutions at max torque
- 900 rpm
- Max. torque
- 1227 Nm
- Emission level
- EU Stage II
More technical details, like: transport width, mouldboard width, front blade width, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and central blade
Special equipment
- Diesel particulate filter
-
No
- Bilateral levelling automatic
-
No
- Front blade
-
No
- Rear ripper
-
Yes
- Aircondition
-
No
