CX 15 Case CX 15 Specifications & Technical Data (2002—2004)

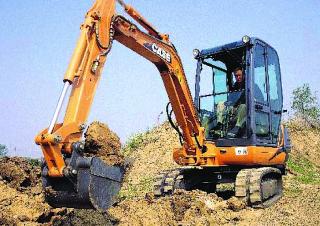

Case CX 15 is a mini excavator manufactured from 2002 to 2004, with a weight of 1.5 t. It features a track width of 230 mm, a tran…

Case CX 15 is a mini excavator manufactured from 2002 to 2004, with a weight of 1.5 t. It features a track width of 230 mm, a transport length of 3.7 m, a transport width of 0.97 m, and a transport height of 2.28 m. The bucket width is 0.45 m, and the maximum bucket capacity is 0.04 m³.

Electric Crawler Excavators Case CX 15

Technical specs - CX 15 Case

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
1.5 t
Transport length
3.7 m
Transport width
0.97 m
Transport height
2.28 m
Bucket capacity max.
0.04 m³
Track width
230 mm
Max. Reach horizontal
3.43 m
Dredging depth
2.16 m
Tear-out force
8.7 kN
Bucket width
0.45 m

More technical details, like: bucket capacity, bucket capacity min., undercarriage, boom, battery voltage, battery capacity, runtime, model series, engine manufacturer, engine model, displacement, engine output - net...

More technical details, like: bucket capacity, bucket capacity min., undercarriage, boom, battery voltage, battery capacity, runtime, model series, engine manufacturer, engine model, displacement, engine output - net, engine output - gross, number of track rollers - each side, track shoe width, transport length mono boom, tailswing radius, overall bucket width - largest, width over fixed tracks, variable track width, ground level reach - mono boom, dig height - mono boom, dump height - mono boom, vertical wall - mono boom, dig depth - mono boom, fuel tank, hydraulic tank, ground bearing pressure, dipper tearout, bucket breakout, main pump, number of main pumps, total flow, boom pressure, operating weight are available in the full technical specs.

Special equipment

Track adjustment
No
Blade
No
Cabin adjustment
No
Overload alert
No
Aircondition
No
Quick hitch hydr.
No
Quick hitch mech.
No

Download datasheets (PDF)

Case CX 15 FAQ

When was the Case CX 15 manufactured?

The Case CX 15 was manufactured from 2002 to 2004.

How much does the Case CX 15 mini excavator weigh?

The Case CX 15 mini excavator weighs 1.5 tons.

What are the transport dimensions of the Case CX 15 mini excavator?

The Case CX 15 has a transport length of 3.7 meters, a transport width of 0.97 meters, and a transport height of 2.28 meters.

What is the track width of the Case CX 15 mini excavator?

The Case CX 15 mini excavator has a track width of 230 mm.

What are the excavation performance specifications of the Case CX 15 mini excavator?

The Case CX 15 mini excavator has a dredging depth of 2.16 meters and a maximum horizontal reach of 3.43 meters.

What are the power ratings of the Case CX 15 mini excavator?

There are no power rating specifications available for the Case CX 15 mini excavator in the provided data.

What are the bucket specifications of the Case CX 15 mini excavator?

The Case CX 15 mini excavator has a maximum bucket capacity of 0.04 cubic meters and a bucket width of 0.45 meters.

What operator safety feature does the Case CX 15 have?

The Case CX 15 has a cabin for driver protection.
