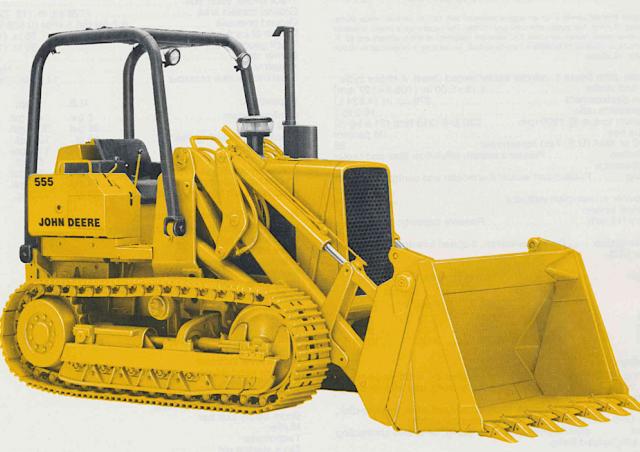

555 John Deere Construction 555 Specifications & Technical Data (1982—2021)

Weight: 8.28t – Transport length: 4.17m – Transport height: 2.56m – Bucket width: 1.84m – Bucket capacity: 0.96m³ – Track width: 356mm

Technical specs - 555 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.28 t
Transport length
4.17 m
Transport height
2.56 m
Bucket width
1.84 m
Bucket capacity
0.96 m³
Track width
356 mm
Travel speed
10.86 km/h
Max. discharge height
2.61 m
Soil pressure
0.58 kg/cm²
Engine manuf.
John Deere
Engine type
N/A
Engine power
53.7 kW
Displacement
4.52 l
Max. torque
313 Nm
No. of cylinders
4
Cylinder bore x stroke
106.4x127 mm

More technical details, like: transport width, model series, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Rear ripper
No
Aircondition
No

Download datasheets (PDF)
