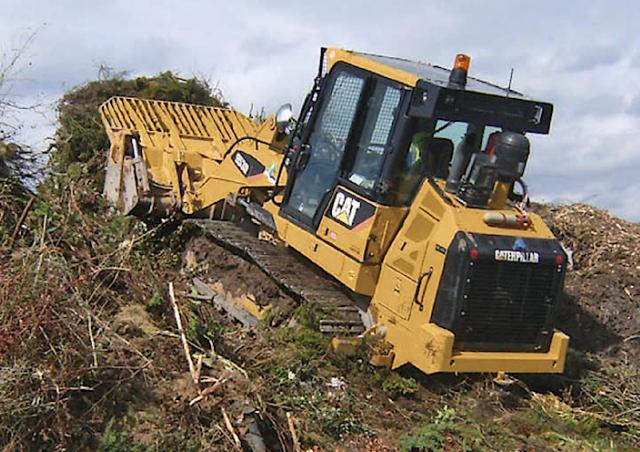

953D-WH Caterpillar 953D-WH Specifications & Technical Data (2009—2026)

Weight: 16t – Transport length: 6.25m – Transport width: 2.28m – Transport height: 3.11m – Bucket capacity: 2.3m³ – Track width: 480mm

Crawler Loaders Caterpillar 953D-WH

Technical specs - 953D-WH Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
16 t
Transport length
6.25 m
Transport width
2.28 m
Transport height
3.11 m
Bucket capacity
2.3 m³
Track width
480 mm
Travel speed
10 km/h
Max. discharge height
2.69 m
Soil pressure
0.67 kg/cm²
Engine manuf.
Caterpillar
Engine type
C6.6 Acert
Engine power
110 kW
Displacement
6.6 l
Cylinder bore x stroke
105x127 mm
Emission level
Tier 3

More technical details, like: bucket width, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.

Basic model with ROPS cabin, std. shovel and teeth

Special equipment

Diesel particulate filter
No
Rear ripper
No
Aircondition
No

Download specalog and datasheets (PDF)
