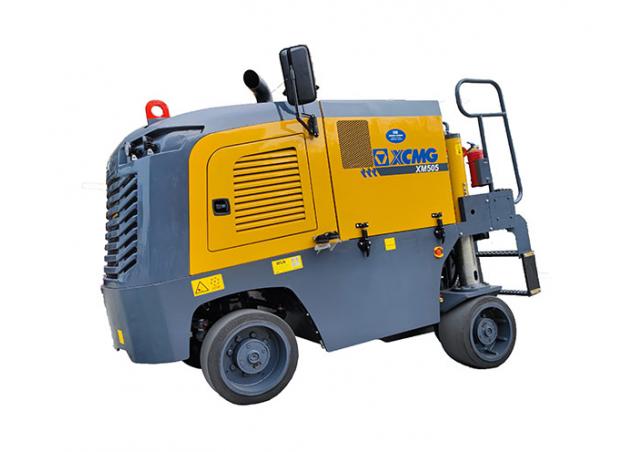

XM505K XCMG XM505K Specifications & Technical Data (2021—2026)

Weight: 9.8t – Standard tyres: 559x254 – Cutting width: 500mm – Cutting depth: 210mm – Operating speed: 46m/min – Travel speed: 12km/h

Cold Milling Machines XCMG XM505K

Visit XCMG live at

Technical specs - XM505K XCMG

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.8 t
Standard tyres
559x254
Cutting width
500 mm
Cutting depth
210 mm
Operating speed
46 m/min
Travel speed
12 km/h
Transport length
8.66 m
Transport width
1.74 m
Transport height
3.965 m
Model series
XM
Engine manuf.
Cummins
Engine type
B4.5
Engine power
115 kW
Displacement
4.5 l
Revolutions at max torque
2000 rpm
Max. torque
712/1200 Nm
No. of cylinders
4
Cylinder bore x stroke
107x124 mm
Emission level
V

More technical details, like: track width, turning radius outside, dimension lxwxh are available in the full technical specs.

Basic model with cutting tools

Special equipment

Diesel particulate filter
No
Cabin
No
Front loading conveyor
No
Infrared heater
No
Aircondition
No
