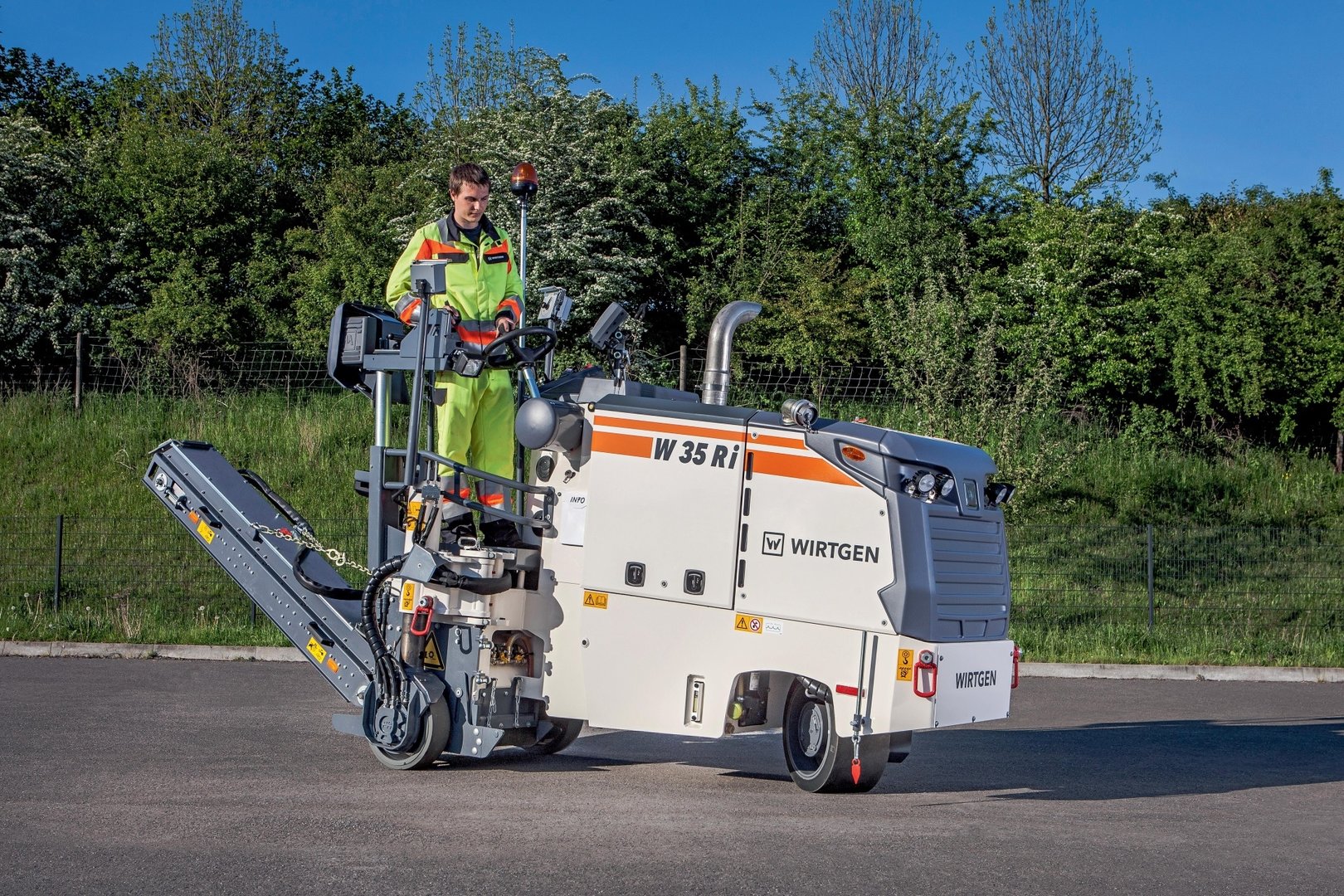

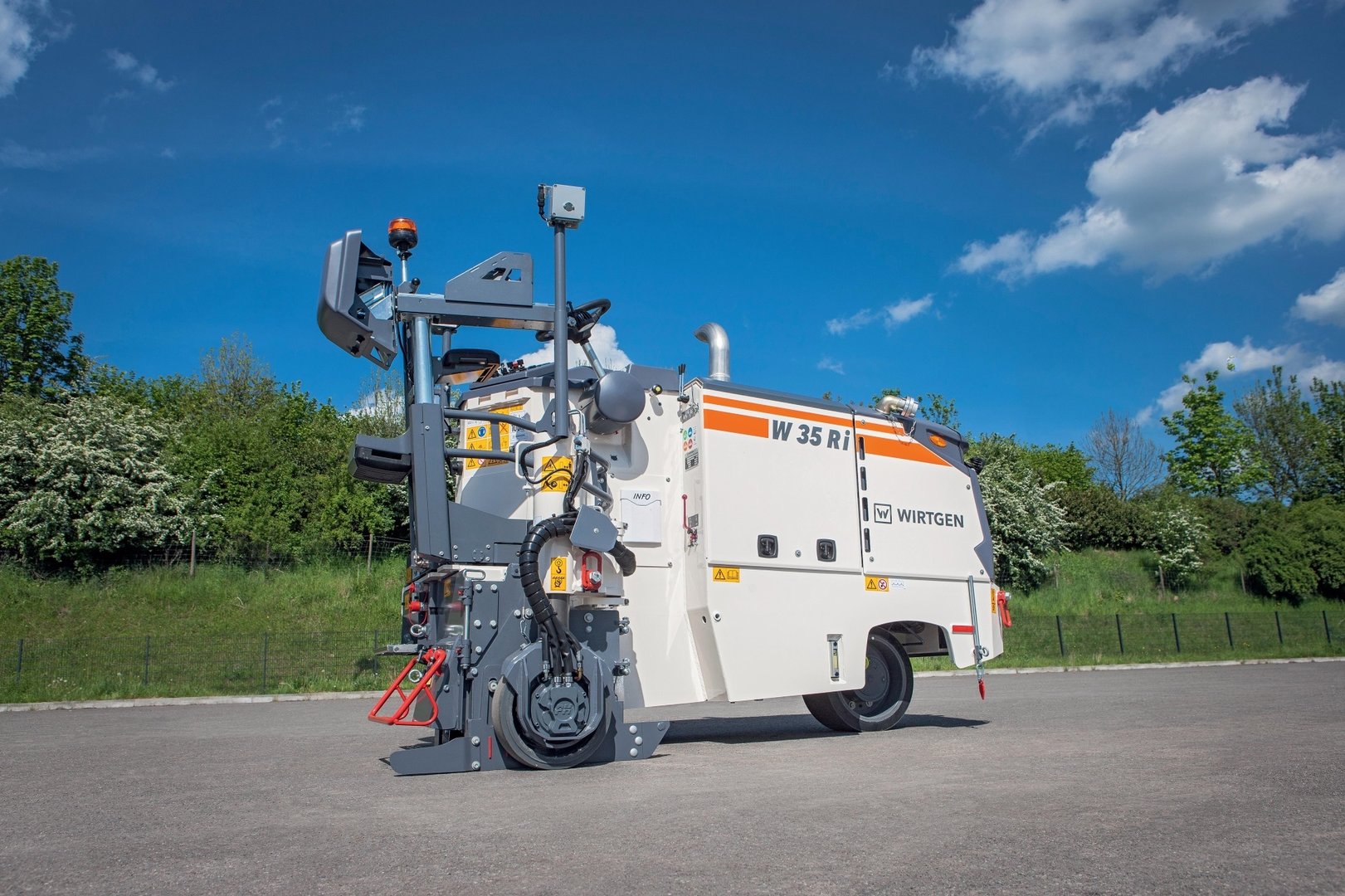

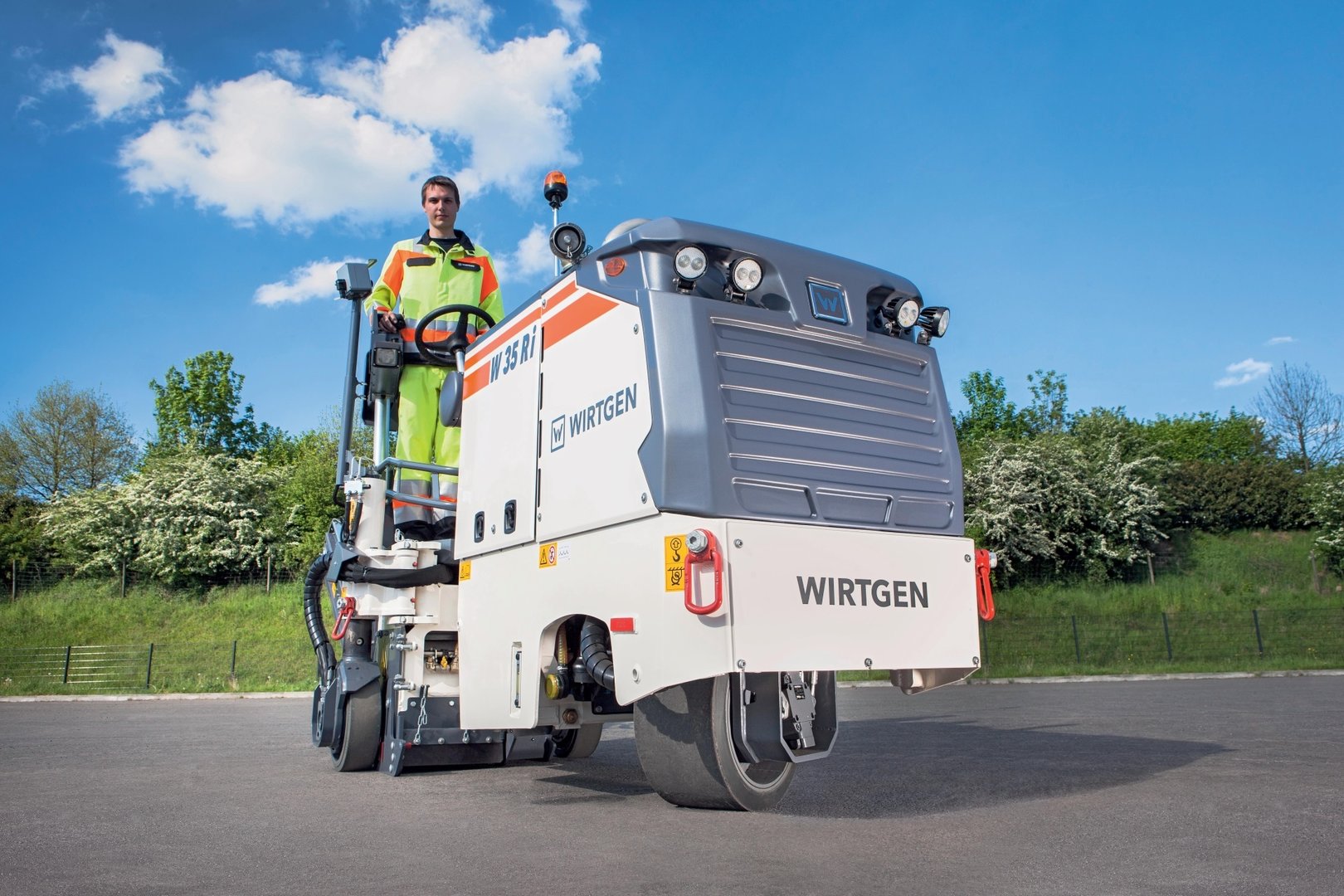

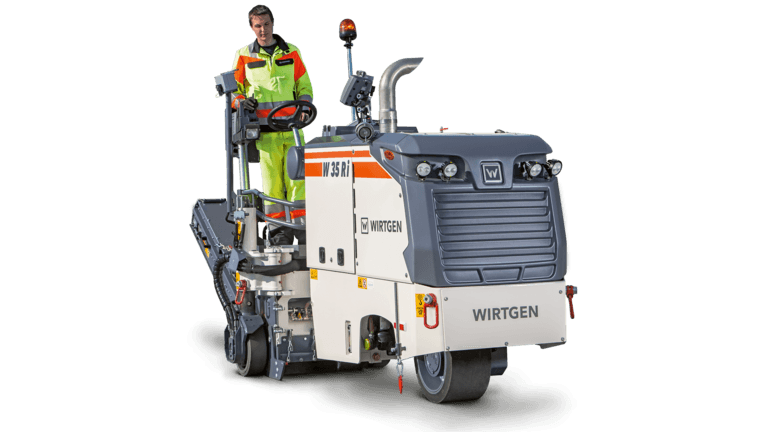

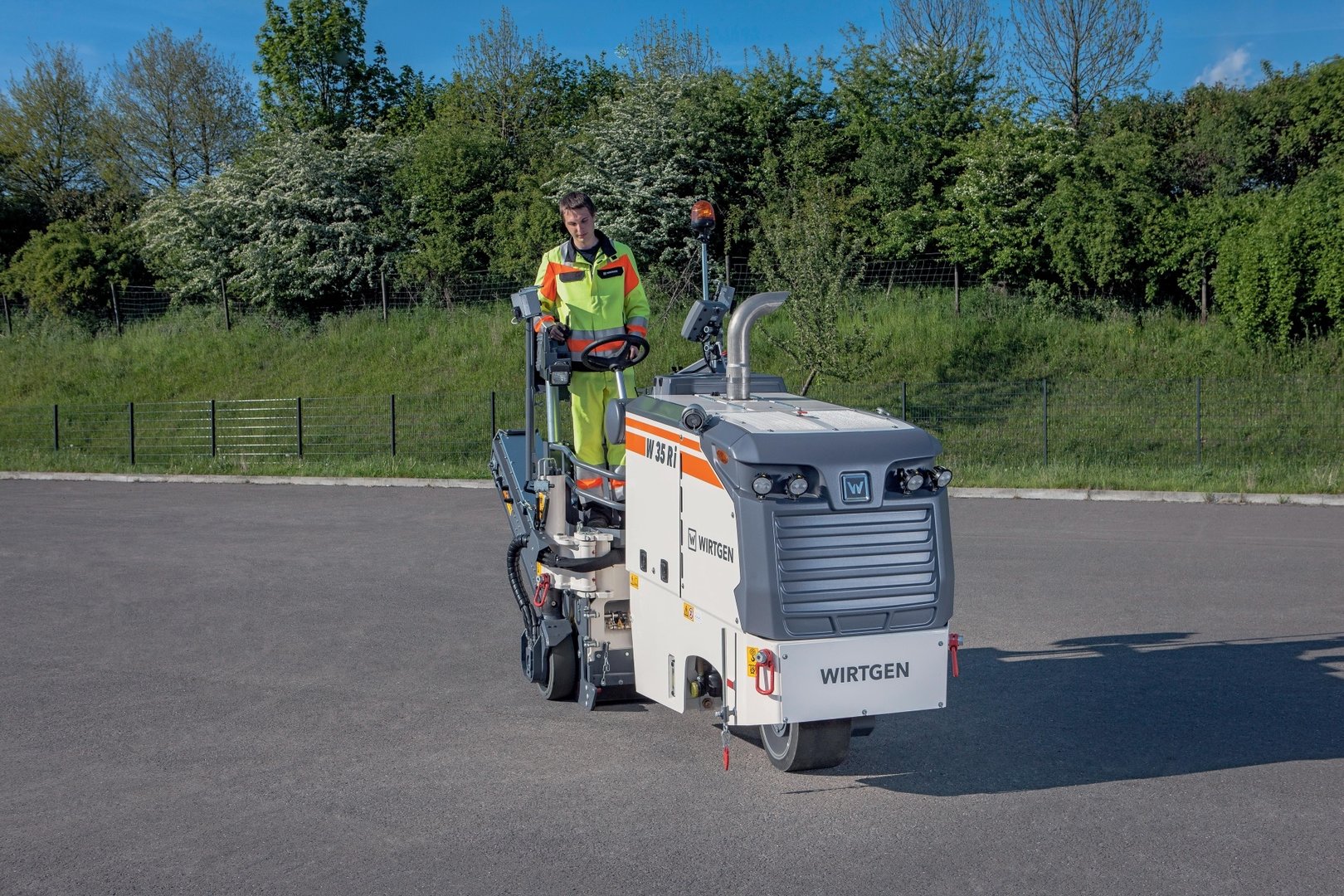

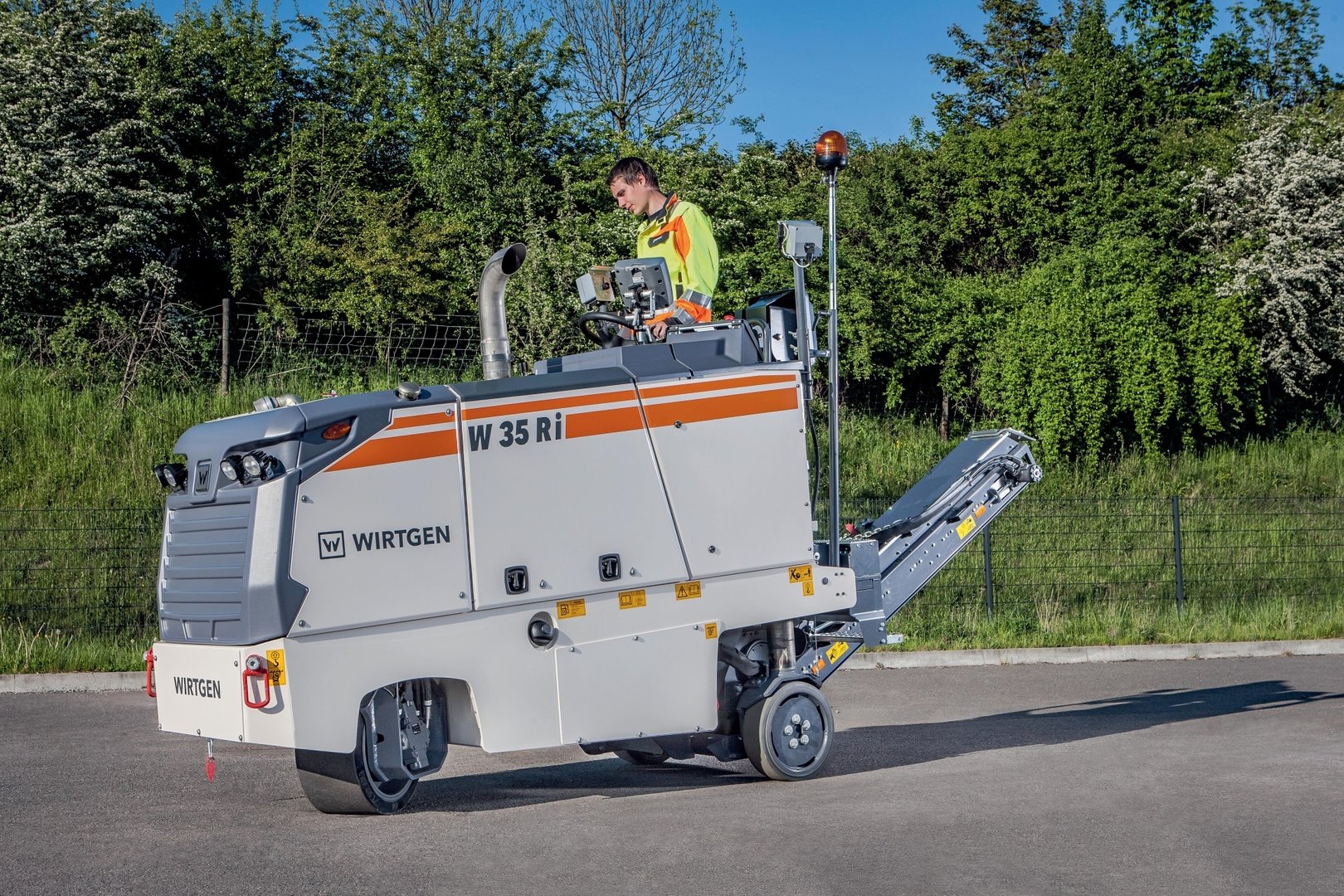

    Wirtgen W 35 Ri Specifications & Technical Data (2021-2023)

    Rate this machine now!

    Weight: 4.4t – Standard tyres: 500x250 / 405x130 – Cutting width: 350mm – Cutting depth: 110mm – Operating speed: 25m/min – Travel speed : 6km/h

    Technical specs - W 35 Ri Wirtgen


    Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

    • Weight 4.4 t
    • Standard tyres 500x250 / 405x130
    • Cutting width 350 mm
    • Cutting depth 110 mm
    • Operating speed 25 m/min
    • Travel speed 6 km/h
    • Transport length 2.91 m
    • Transport width 0.9 m
    • Transport height 2.04 m
    • Engine manuf. Deutz
    • Engine type TCD2.9 L4
    • Engine power 45 kW
    • Displacement 2.925 l
    • Emission level Euro V / US Tier 4f

    More technical details, like: track width, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

    Basic model with cutting tools

    Special equipment

    • Diesel particulate filter
    • Cabin
    • Front loading conveyor
    • Infrared heater
    • Aircondition
