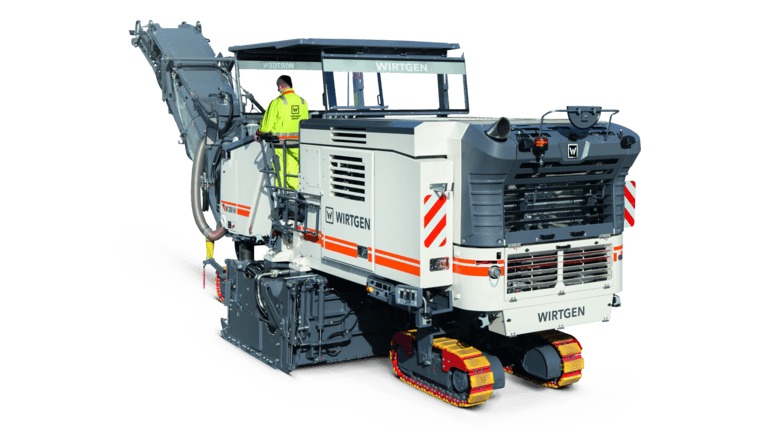

Wirtgen W 200 Hi Specifications & Technical Data (2021-2023)

Weight: 27.8t – Track width: 260mm – Cutting width: 2100mm – Cutting depth: 300mm – Operating speed: 85m/min – Travel speed : 5km/h

Technical specs
Buy & Rent
Parts & Components
Events & News
Transport
Contacts & Help
Machine inspection

Technical specs - W 200 Hi Wirtgen

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

Weight 27.8 t
Track width 260 mm
Cutting width 2100 mm
Cutting depth 300 mm
Operating speed 85 m/min
Travel speed 5 km/h

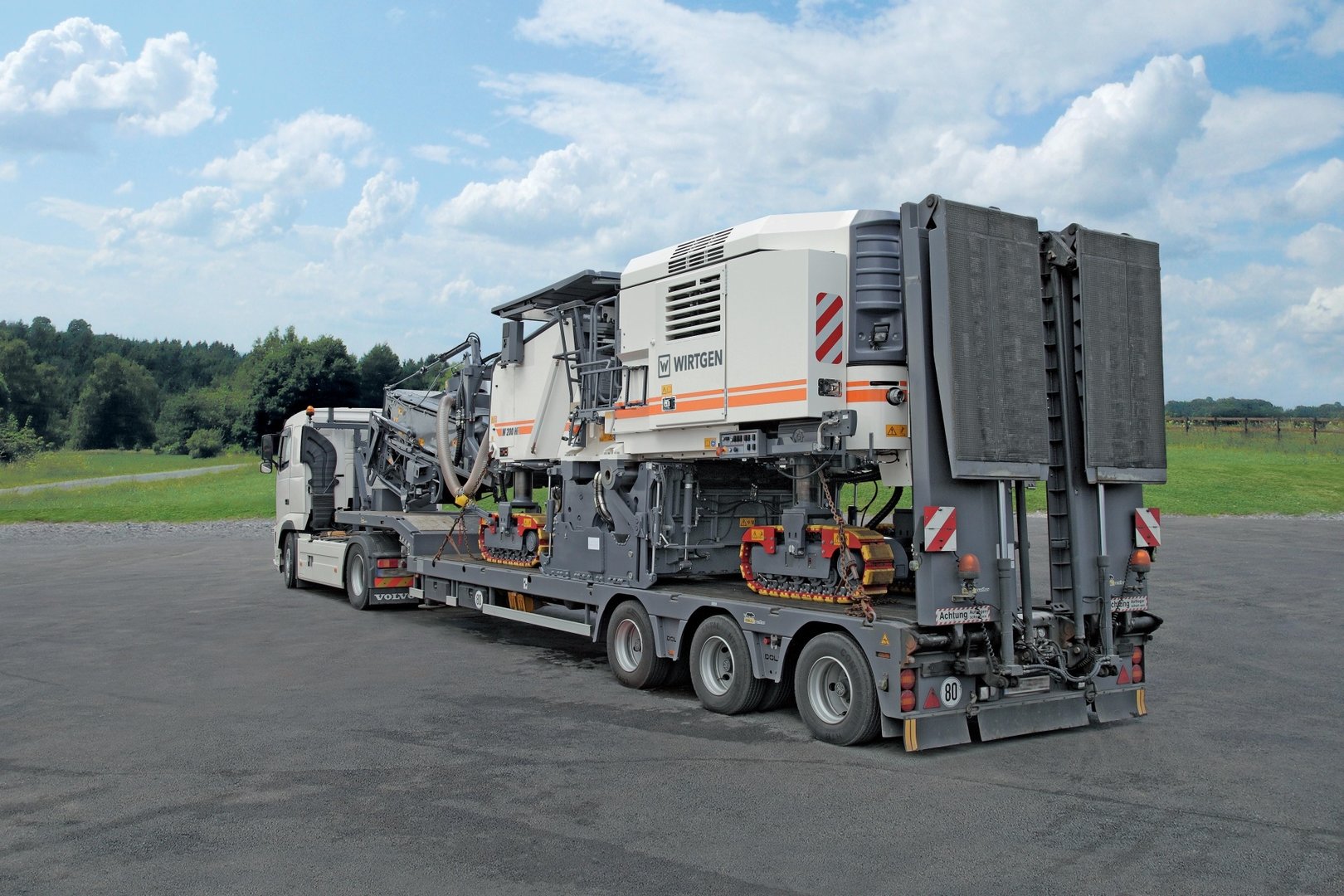

Transport length 8.76 m
Transport width 2.49 m
Transport height 3.85 m
Engine manuf. Cummins
Engine type QSX15
Engine power 455 kW
Displacement 15 l
Emission level EU IV / US Tier 4f

More technical details, like: standard tyres, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with cutting tools

Special equipment

Diesel particulate filter
Cabin
Front loading conveyor
Infrared heater
Aircondition
