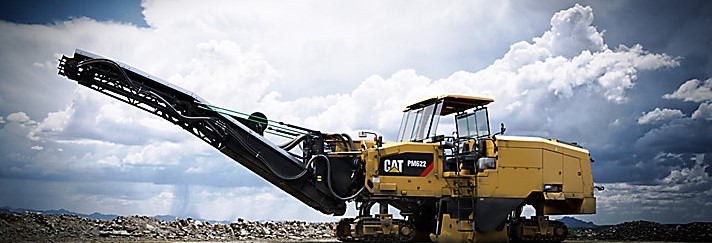

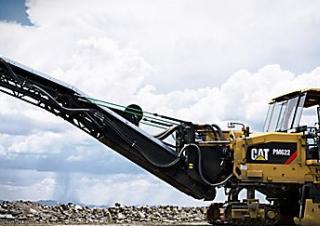

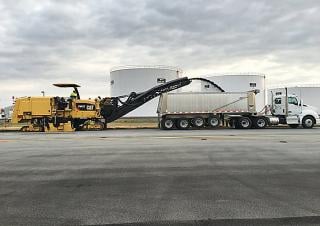

Caterpillar PM622
- Weight:
- 30 t
- Cutting width:
- 2235 mm
- Cutting depth:
- 330 mm
- Operating speed:
- 100 m/min
PM622 Caterpillar PM622 Specifications & Technical Data (2016—2026)
.jpg)
.jpg)
.jpg)
.jpg)
Technical specs - PM622 Caterpillar
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 30 t
- Cutting width
- 2235 mm
- Cutting depth
- 330 mm
- Operating speed
- 100 m/min
- Travel speed
- 5.9 km/h
- Transport length
- 12.43 m
- Transport width
- 2.7 m
- Transport height
- 3 m
- Model series
- PM
- Engine manuf.
- Caterpillar
- Engine type
- C18 Acert
- Engine power
- 470 kW
- Displacement
- 18.1 l
- Cylinder bore x stroke
- 145x183 mm
- Emission level
- Tier 4 f
More technical details, like: track width, standard tyres, turning radius outside, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders are available in the full technical specs.
Basic model with cutting tools
Special equipment
- Diesel particulate filter
-
Yes
- Cabin
-
No
- Front loading conveyor
-
No
- Infrared heater
-
No
- Aircondition
-
No
