PM102 Caterpillar PM102 Specifications & Technical Data (2019—2026)

Weight: 21.84t – Cutting width: 1225mm – Cutting depth: 330mm – Operating speed: 33m/min – Travel speed: 5.5km/h – Transport length: 9.32m

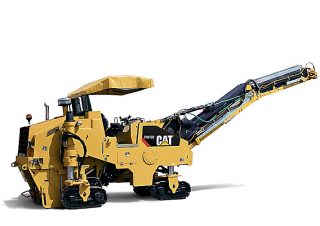

Cold Milling Machines Caterpillar PM102
Cold Milling Machines Caterpillar PM102
Cold Milling Machines Caterpillar PM102
Cold Milling Machines Caterpillar PM102

Technical specs - PM102 Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
21.84 t
Cutting width
1225 mm
Cutting depth
330 mm
Operating speed
33 m/min
Travel speed
5.5 km/h
Transport length
9.32 m
Transport width
2.55 m
Transport height
2.98 m
Model series
PM
Engine manuf.
Caterpillar
Engine type
C7 Acert
Engine power
247 kW

More technical details, like: track width, standard tyres, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model with cutting tools

Special equipment

Diesel particulate filter
No
Cabin
No
Front loading conveyor
No
Infrared heater
No
Aircondition
No
