BM 2000/65 Bomag BM 2000/65 Specifications & Technical Data (2021—2026)

Weight: 24.65t – Track width: 570mm – Cutting width: 2000mm – Cutting depth: 350mm – Turning radius outside: 2.1m – Operating speed: 100m/min

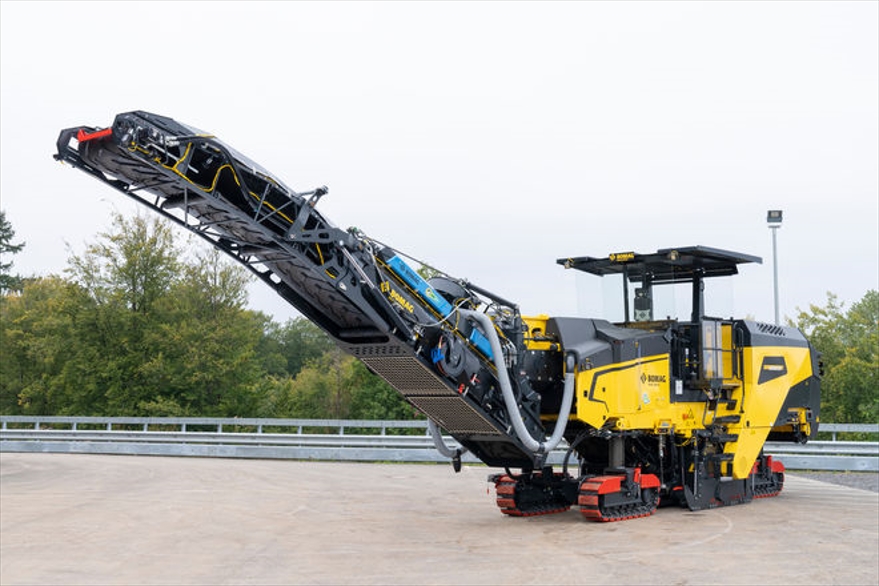

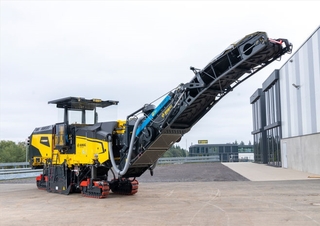

Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65
Cold Milling Machines Bomag BM 2000/65

Visit Bomag live at

Technical specs - BM 2000/65 Bomag

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
24.65 t
Track width
570 mm
Cutting width
2000 mm
Cutting depth
350 mm
Turning radius outside
2.1 m
Operating speed
100 m/min
Travel speed
6 km/h
Transport length
8.24 m
Transport width
2.5 m
Transport height
4.02 m
Model series
BM
Engine manuf.
Cummins
Engine type
X15
Engine power
470 kW
Displacement
14.9 l
Revolutions at max torque
1900 rpm
Max. torque
2778/1400 Nm
No. of cylinders
6
Emission level
V/Tier 4f

More technical details, like: standard tyres, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with cutting tools

Special equipment

Diesel particulate filter
No
Cabin
No
Front loading conveyor
Yes
Infrared heater
No
Aircondition
No
