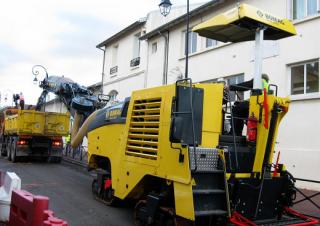

BM 1300/35 Bomag BM 1300/35 Specifications & Technical Data (2014—2026)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Visit Bomag live at
Technical specs - BM 1300/35 Bomag
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 23.4 t
- Track width
- 680 mm
- Cutting width
- 1300 mm
- Cutting depth
- 330 mm
- Operating speed
- 50 m/min
- Travel speed
- 7.5 km/h
- Transport length
- 6.142 m
- Transport width
- 2.54 m
- Transport height
- 4.1 m
- Model series
- BM
- Engine manuf.
- MTU
- Engine type
- OM926 LA
- Engine power
- 240 kW
More technical details, like: standard tyres, turning radius outside, dimension lxwxh, displacement, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level are available in the full technical specs.
Basic model with cutting tools
Special equipment
- Diesel particulate filter
-
No
- Cabin
-
No
- Front loading conveyor
-
Yes
- Infrared heater
-
No
- Aircondition
-
No
Download datasheets (PDF)
