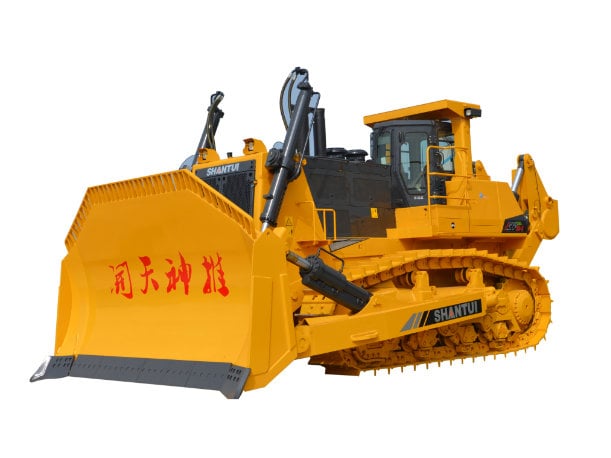

SD90-C5 Shantui SD90-C5 Specifications & Technical Data (2020—2026)

Weight: 106.26t – Transport length: 11.5m – Transport width: 3.48m – Transport height: 4.658m – Blade type: SU – Track width: 710mm

Bulldozers Shantui SD90-C5

Technical specs - SD90-C5 Shantui

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
106.26 t
Transport length
11.5 m
Transport width
3.48 m
Transport height
4.658 m
Blade type
SU
Track width
710 mm
Travel speed
10.9 km/h
Reverse travel speed
14.3 km/h
Front blade width
5.265 m
Model series
LARGE
Engine manuf.
Cummins
Engine type
QST30
Engine power
708 kW
Displacement
30.5 l
Revolutions at max torque
1300 rpm
Max. torque
4191 Nm
Emission level
China III

More technical details, like: soil pressure, transmission type, max. drawbar pull, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
Yes
Tilt device
No
Aircondition
No

Download datasheets (PDF)

Shantui SD90-C5 FAQ

When was the Shantui SD90-C5 manufactured?

The Shantui SD90-C5 was first produced in 2020.

How much does the Shantui SD90-C5 weigh?

The Shantui SD90-C5 weighs 106.2 tons.

What are the transport dimensions of the Shantui SD90-C5 bulldozer?

The Shantui SD90-C5 has a transport length of 11.5 meters, a transport width of 5.26 meters, and a transport height of 4.59 meters.

How much is a Shantui SD90-C5 Bulldozer (2020u20132025) worth?

The residual value of the Shantui SD90-C5 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
