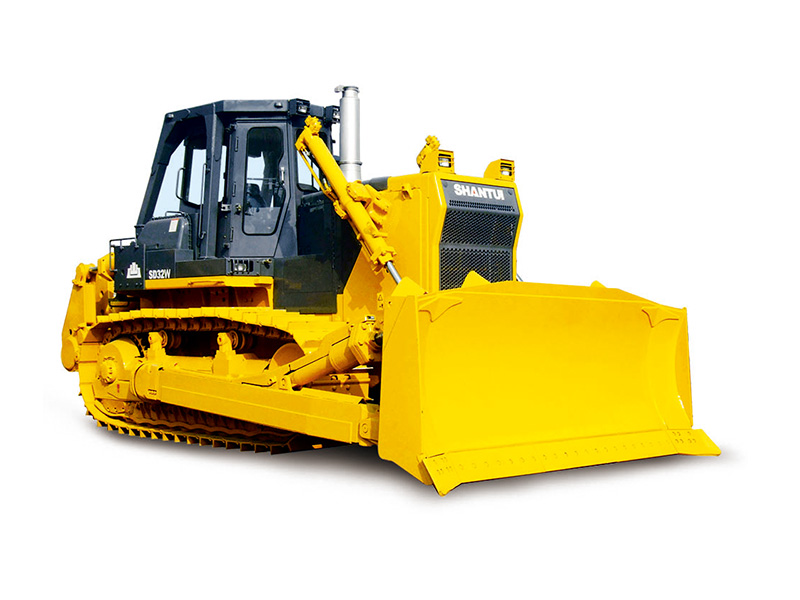

SD32W Shantui SD32W Specifications & Technical Data (2018—2026)
Technical specs - SD32W Shantui
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 38 t
- Transport length
- 6.88 m
- Transport width
- 4.13 m
- Transport height
- 3.64 m
- Blade type
- B
- Soil pressure
- 1.09 kg/cm²
- Track width
- 560 mm
- Travel speed
- 11.5 km/h
- Front blade width
- 4.13 m
- Model series
- LARGE
- Engine manuf.
- Cummins
- Engine type
- NTA855-C360S10
- Engine power
- 235 kW
- Displacement
- 14.01 l
- Max. torque
- 1440 Nm
- No. of cylinders
- 6
- Cylinder bore x stroke
- 139.7x152.4 mm
More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, emission level are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
