PR 756 Liebherr PR 756 Specifications & Technical Data (2014—2020)

Weight: 34.9t – Transport length: 4.89m – Transport width: 3.15m – Transport height: 3.61m – Blade type: SU – Soil pressure: 0.9kg/cm²

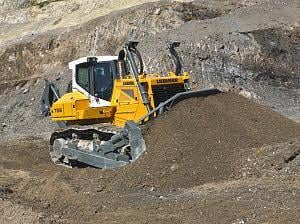

Bulldozers Liebherr PR 756

Visit Liebherr live at

Technical specs - PR 756 Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
34.9 t
Transport length
4.89 m
Transport width
3.15 m
Transport height
3.61 m
Blade type
SU
Soil pressure
0.9 kg/cm²
Track width
610 mm
Travel speed
11 km/h
Front blade width
4.04 m
Model series
PR
Engine manuf.
Liebherr
Engine type
D946 LA6
Engine power
250 kW
Displacement
12 l
Revolutions at max torque
1600 rpm
No. of cylinders
6
Emission level
IV

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available, platform, grade control available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, speed mode - 1, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
Yes
Aircondition
Yes

Download datasheets (PDF)

Liebherr PR 756 FAQ

When was the Liebherr PR 756 manufactured?

The Liebherr PR 756 was manufactured from 2014 to 2020.

How much does the Liebherr PR 756 bulldozer weigh?

The Liebherr PR 756 bulldozer weighs 34.9 tons.

What are the transport dimensions of the Liebherr PR 756 bulldozer?

The Liebherr PR 756 bulldozer has a transport length of 4.89 meters, a transport width of 3.15 meters, and a transport height of 3.61 meters.

What is the travel speed of the Liebherr PR 756 bulldozer?

The Liebherr PR 756 bulldozer has a travel speed of 11 km/h.

What is the fuel consumption range of the Liebherr PR 756 bulldozer?

The fuel consumption range of the Liebherr PR 756 bulldozer is between 18 and 30 liters per hour.

What are the undercarriage specifications of the Liebherr PR 756 bulldozer?

The Liebherr PR 756 bulldozer has a track width of 610 mm and a soil pressure of 0.9 kg/cmu00b2.

What are the specifications of the primary work tool blade on the Liebherr PR 756 bulldozer?

The Liebherr PR 756 bulldozer is equipped with a Semi-U-blade that has a front blade width of 4.04 meters.

How much is a Liebherr PR 756 Bulldozer (2014u20132020) worth?

The residual value of the Liebherr PR 756 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
