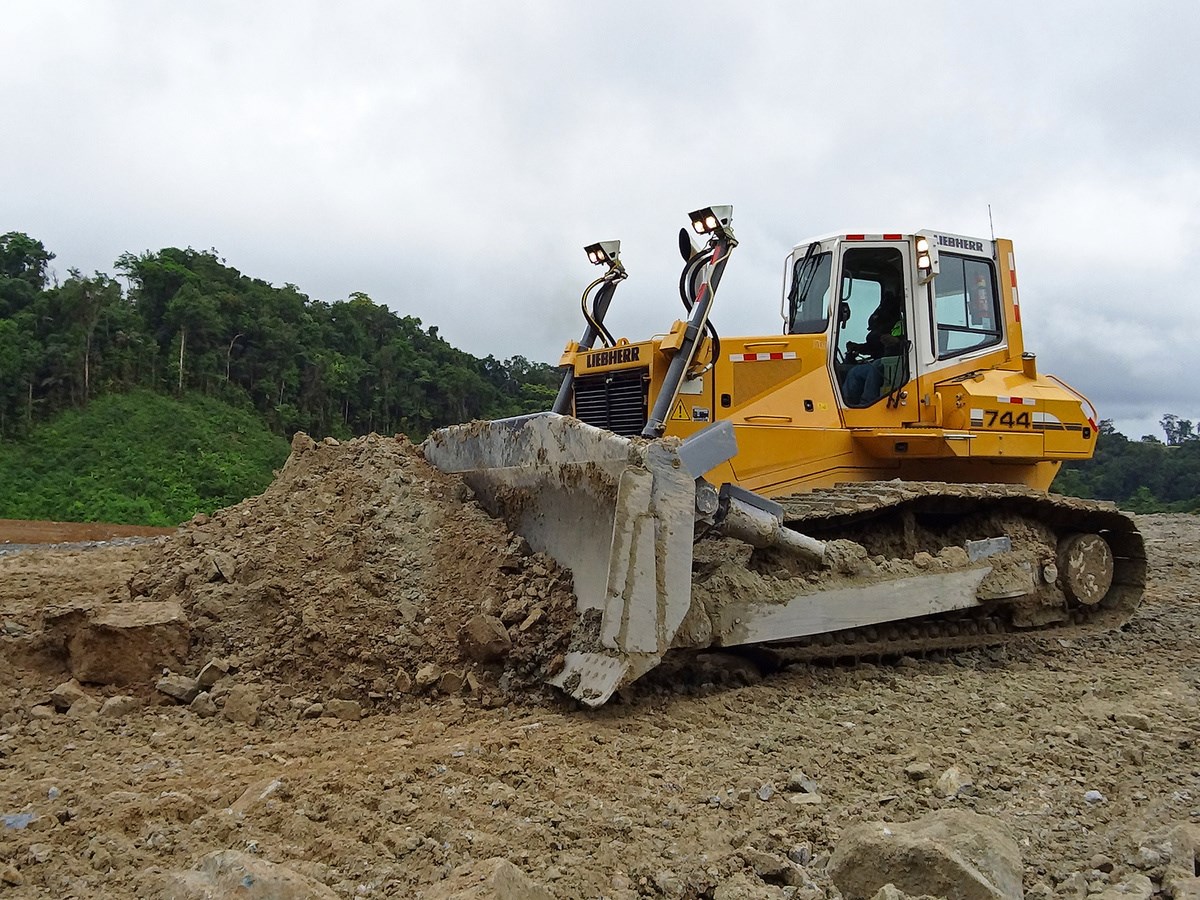

Liebherr PR 744 LGP Specifications & Technical Data (2006-2016)

Technical specs - PR 744 LGP Liebherr

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 27.3 t

Transport length: 4.7 m

Transport width: 3.6 m

Transport height: 3.43 m

Blade type: B

Soil pressure: 0.5 kg/cm²

Track width: 812 mm

Travel speed: 11 km/h

Front blade width: 4.52 m

Model series: PR

Engine manuf.: Liebherr

Engine type: D 936 LA 6

Engine power: 185 kW

Displacement: 10.5 l

Revolutions at max torque: 1600 rpm

No. of cylinders: 6

Emission level: IIIA

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, cylinder bore x stroke, undercarriage type, undercarriage system, cab - type, rops, fops, telematics available, platform, grade control available, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, transmission type, speed mode - 1, carrier rollers, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: Yes
Aircondition: Yes

Download datasheets (PDF)

Liebherr PR 744 LGP FAQ

When was the Liebherr PR 744 LGP manufactured?

The Liebherr PR 744 LGP was manufactured from 2006 to 2016.

How much does the Liebherr PR 744 LGP weigh?

The Liebherr PR 744 LGP weighs 27.3 tons.

What are the transport dimensions of the Liebherr PR 744 LGP bulldozer?

The Liebherr PR 744 LGP has a transport length of 4.7 meters, a transport width of 3.6 meters, and a transport height of 3.43 meters.

What is the travel speed of the Liebherr PR 744 LGP bulldozer?

The Liebherr PR 744 LGP bulldozer has a travel speed of 11 km/h.

What are the undercarriage specifications of the Liebherr PR 744 LGP bulldozer?

The Liebherr PR 744 LGP bulldozer has a track width of 812 mm and a soil pressure of 0.5 kg/cmu00b2.

What are the specifications of the primary work tool on the Liebherr PR 744 LGP bulldozer?

The Liebherr PR 744 LGP bulldozer is equipped with a front blade that has a width of 4.52 meters.

How much is a Liebherr PR 744 LGP Bulldozer (2006u20132016) worth?

The residual value of the Liebherr PR 744 LGP depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
