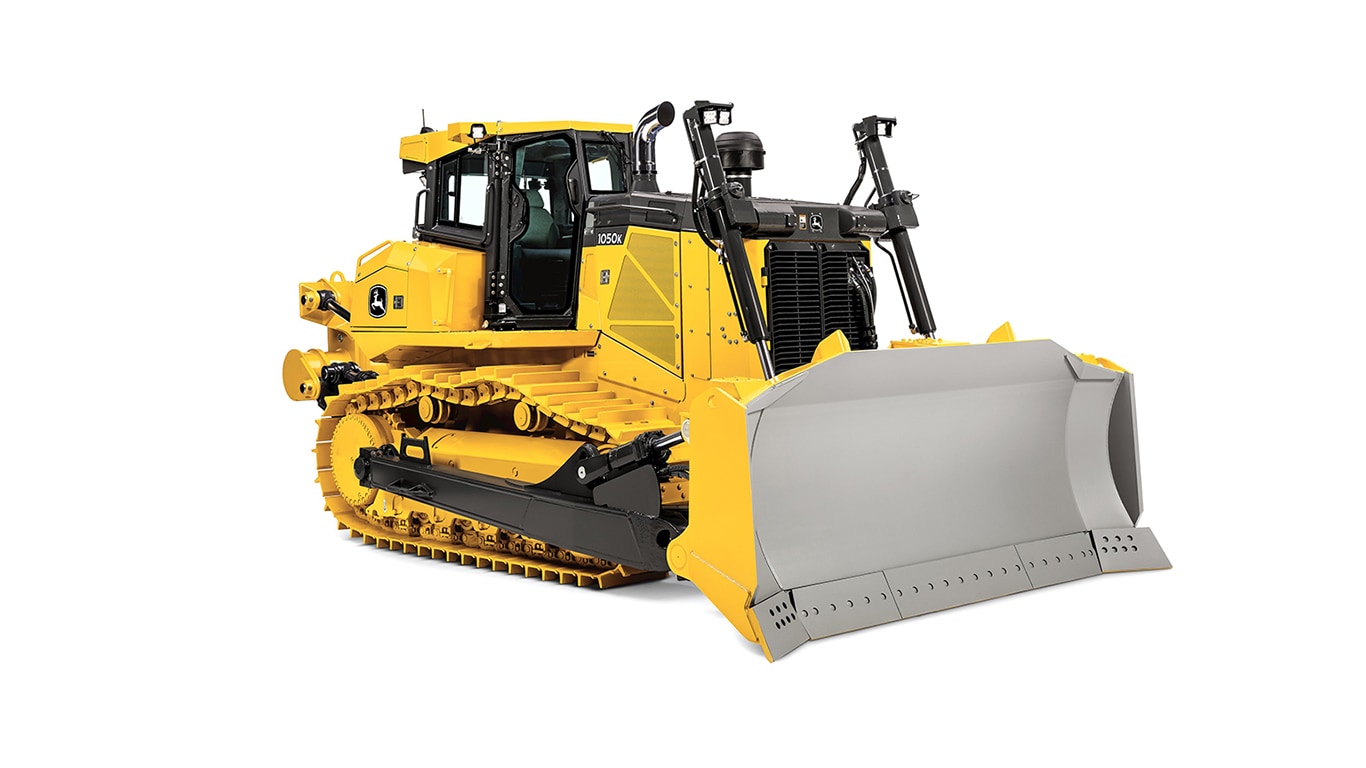

John Deere Construction 1050K Specifications & Technical Data (2019-2021)

Rate this machine now!

Weight: 42.8t – Transport length: 6.678m – Transport width: 3.964m – Transport height: 3.476m – Blade type: SU – Soil pressure: 1.03kg/cm²

Technical specs - 1050K John Deere Construction


Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur.Contact our team with any change suggestion.

  • Weight 42.8 t
  • Transport length 6.678 m
  • Transport width 3.964 m
  • Transport height 3.476 m
  • Blade type SU
  • Soil pressure 1.03 kg/cm²
  • Track width 610 mm
  • Travel speed 11 km/h
  • Reverse travel speed 11 km/h
  • Front blade width 3.96 m
  • Transmission type HY
  • max. Drawbar Pull 66.28 t
  • Engine manuf. John Deere
  • Engine type PowerTech 6135
  • Engine power 261 kW
  • Displacement 13.5 l
  • Revolutions at max torque 1800 rpm
  • Max. torque 1576/1300 Nm
  • No. of cylinders 6
  • Emission level Tier 4f/EU IV

More technical details, like: dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

  • Diesel particulate filter
  • Rear ripper
  • Tilt device
  • Aircondition
