D9T Caterpillar D9T Specifications & Technical Data (2004—2015)

Weight: 47.8t – Transport length: 8.47m – Transport width: 3.31m – Transport height: 4m – Blade type: U – Track width: 685mm

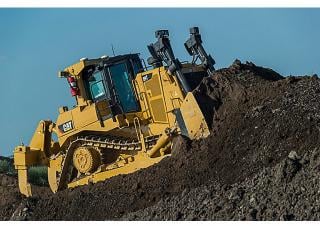

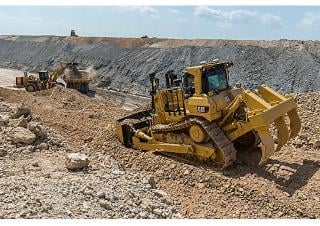

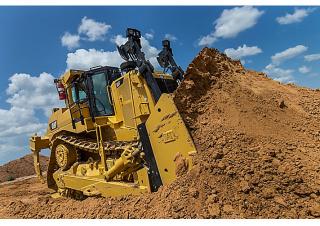

Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T
Bulldozers Caterpillar D9T

Technical specs - D9T Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
47.8 t
Transport length
8.47 m
Transport width
3.31 m
Transport height
4 m
Blade type
U
Track width
685 mm
Travel speed
14.3 km/h
Reverse travel speed
14.3 km/h
Front blade width
4.65 m
Transmission type
HY
Model series
D
Engine manuf.
Caterpillar
Engine type
C18 Acert
Engine power
343 kW
Displacement
18.1 l
Cylinder bore x stroke
145x183 mm

More technical details, like: soil pressure, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level, undercarriage type, undercarriage system, traction control system, cab - type, rops...

More technical details, like: soil pressure, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level, undercarriage type, undercarriage system, traction control system, cab - type, rops, fops, rear view system available, platform, telematics available, platform, grade control available, platform, platforms - option 1, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, speed mode - 1, carrier rollers, track rollers, raised sprocket, shoe - pitch, shoe - width, shoe - type, ground contact area, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar D9T FAQ

When was the Caterpillar D9T manufactured?

The Caterpillar D9T was manufactured from 2004 to 2015.

How much does the Caterpillar D9T weigh?

The Caterpillar D9T weighs 47.8 tons.

What are the transport dimensions of the Caterpillar D9T bulldozer?

The Caterpillar D9T bulldozer has a transport length of 8.47 meters, a transport width of 3.31 meters, and a transport height of 4 meters.

What are the travel speeds of the Caterpillar D9T bulldozer?

The Caterpillar D9T bulldozer has a travel speed of 14.3 km/h and a reverse travel speed of 14.3 km/h.

What is the track width of the Caterpillar D9T bulldozer's undercarriage?

The Caterpillar D9T bulldozer has a track width of 685 mm.

What are the power ratings of the Caterpillar D9T?

Power rating information for the Caterpillar D9T is not provided in the available data.

What are the specifications of the primary work tool on the Caterpillar D9T?

The Caterpillar D9T is equipped with a U-blade that has a front blade width of 4.65 meters.
