D8T Caterpillar D8T Specifications & Technical Data (2004—2017)

Model rating
9,00 / 10

Weight: 37.2t – Transport length: 7.87m – Transport width: 3.06m – Transport height: 3.46m – Blade type: U – Track width: 711mm

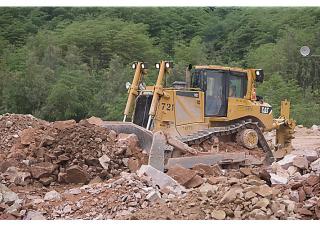

Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T
Bulldozers Caterpillar D8T

Technical specs - D8T Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
37.2 t
Transport length
7.87 m
Transport width
3.06 m
Transport height
3.46 m
Blade type
U
Track width
711 mm
Travel speed
14.2 km/h
Reverse travel speed
11.8 km/h
Transmission type
HY
Model series
D
Engine manuf.
Caterpillar
Engine type
C15 Acert
Engine power
231 kW
Displacement
15.2 l
Cylinder bore x stroke
137x172 mm

More technical details, like: soil pressure, front blade width, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level, undercarriage type, telematics available, platform, grade control available...

More technical details, like: soil pressure, front blade width, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, emission level, undercarriage type, telematics available, platform, grade control available, platform, engine manufacturer, engine model, emission rating, aspiration, rated speed, engine output - net, engine output - gross, transmission type, carrier rollers, track rollers, raised sprocket, shoe - pitch, shoe - width, shoe - type, ground contact area, number of shoes, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, speed - reverse maximum, ground bearing pressure, drawbar pull - maximum, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
No
Rear ripper
No
Tilt device
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar D8T FAQ

When was the Caterpillar D8T manufactured?

The Caterpillar D8T was manufactured from 2004 to 2017.

How much does the Caterpillar D8T weigh?

The Caterpillar D8T weighs 37.2 tons.

What are the transport dimensions of the Caterpillar D8T bulldozer?

The Caterpillar D8T bulldozer has a transport length of 7.87 meters, a transport width of 3.06 meters, and a transport height of 3.46 meters.

What are the travel speeds of the Caterpillar D8T bulldozer?

The Caterpillar D8T bulldozer has a travel speed of 14.2 km/h forward and 11.8 km/h in reverse.

What is the track width of the Caterpillar D8T bulldozer?

The Caterpillar D8T bulldozer has a track width of 711 mm.

What are the power ratings of the Caterpillar D8T?

The provided data does not include any power ratings for the Caterpillar D8T.

What type of blade does the Caterpillar D8T bulldozer use?

The Caterpillar D8T bulldozer uses a U-blade as its primary work tool.

How much is a Caterpillar D8T Bulldozer (2004u20132017) worth?

The residual value of the Caterpillar D8T depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
