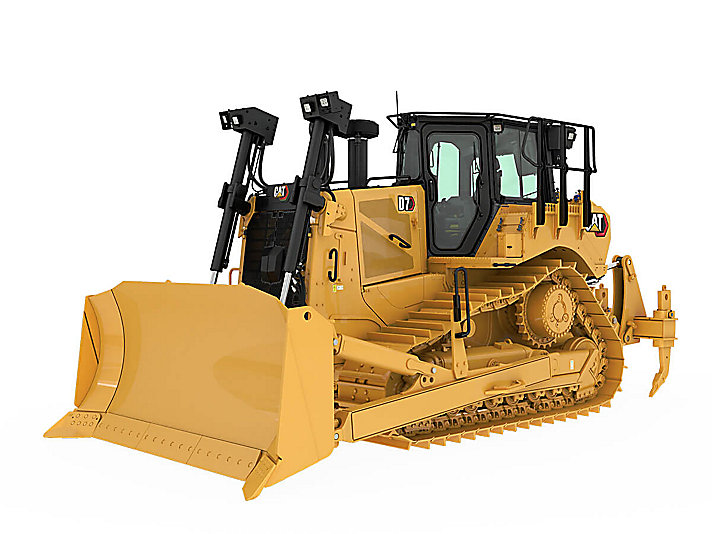

D7 XL Caterpillar D7 XL Specifications & Technical Data (2020—2026)

Weight: 29.7t – Transport length: 4.74m – Transport width: 3.4m – Transport height: 3.37m – Blade type: SU – Track width: 660mm

Bulldozers Caterpillar D7 XL

Technical specs - D7 XL Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
29.7 t
Transport length
4.74 m
Transport width
3.4 m
Transport height
3.37 m
Blade type
SU
Track width
660 mm
Travel speed
10.54 km/h
Reverse travel speed
13.58 km/h
Front blade width
4.54 m
Transmission type
LS
Engine manuf.
Caterpillar
Engine type
C9.3B Acert
Engine power
230 kW
Displacement
9.3 l
Emission level
EU V

More technical details, like: soil pressure, max. drawbar pull, model series, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter
Yes
Rear ripper
No
Tilt device
No
Aircondition
Yes

Download specalog and datasheets (PDF)

Caterpillar D7 XL FAQ

When was the Caterpillar D7 XL manufactured?

The Caterpillar D7 XL was first produced in 2020.

How much does the Caterpillar D7 XL weigh?

The Caterpillar D7 XL weighs 29.7 tons.

What are the transport dimensions of the Caterpillar D7 XL bulldozer?

The Caterpillar D7 XL bulldozer has a transport length of 4.74 meters, a transport width of 3.4 meters, and a transport height of 3.37 meters.

What are the travel speeds of the Caterpillar D7 XL bulldozer?

The Caterpillar D7 XL bulldozer has a travel speed of 10.54 km/h and a reverse travel speed of 13.58 km/h.

What is the track width of the Caterpillar D7 XL bulldozer?

The Caterpillar D7 XL bulldozer has a track width of 660 mm.

What are the power ratings of the Caterpillar D7 XL?

The available data does not include any power ratings for the Caterpillar D7 XL.

What are the specifications of the primary work tool blade on the Caterpillar D7 XL?

The Caterpillar D7 XL is equipped with a semi-U-blade that has a front blade width of 4.54 meters.

How much is a Caterpillar D7 XL Bulldozer (2020u20132025) worth?

The residual value of the Caterpillar D7 XL depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
