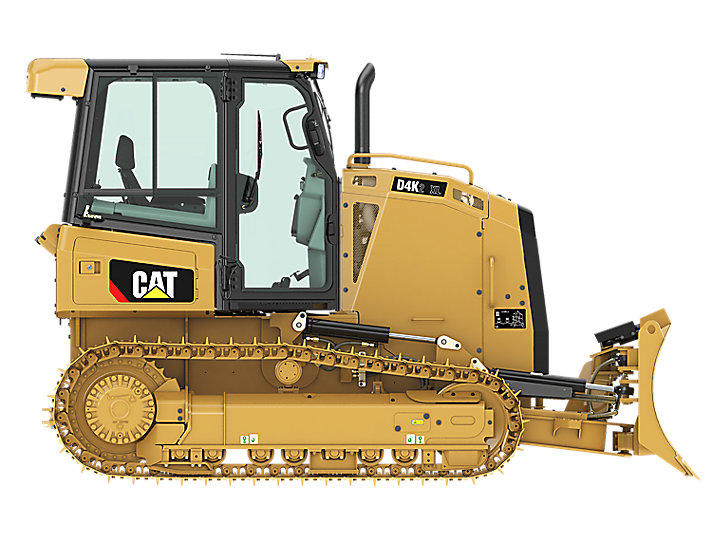

Caterpillar D4K M Specifications & Technical Data (2007-2017)

Technical specs - D4K M Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.5 t

Transport length: 4.27 m

Transport width: 2.36 m

Transport height: 2.76 m

Blade type: PAT

Track width: 635 mm

Front blade width: 3.149 m

Model series: D

Engine manuf.: Caterpillar

Engine type: C4.4 Acert

Engine power: 68 kW

Displacement: 4.4 l

More technical details, like: soil pressure, travel speed, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type...

More technical details, like: soil pressure, travel speed, reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, revolutions at max torque, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, emission rating, aspiration, engine output - net, transmission type, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, service brake type, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, steering - clutches and brakes, fuel tank, blade - capacity, speed - forward maximum, ground bearing pressure, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

Caterpillar D4K M FAQ

When was the Caterpillar D4K M manufactured?

The Caterpillar D4K M was manufactured from 2007 to 2017.

How much does the Caterpillar D4K M bulldozer weigh?

The Caterpillar D4K M bulldozer weighs 8.5 tons.

What are the transport dimensions of the Caterpillar D4K M bulldozer?

The Caterpillar D4K M has a transport length of 4.27 meters, a transport width of 2.36 meters, and a transport height of 2.76 meters.

What is the track width of the Caterpillar D4K M bulldozer's undercarriage?

The Caterpillar D4K M bulldozer has a track width of 635 mm.

What are the specifications of the primary work tool on the Caterpillar D4K M bulldozer?

The Caterpillar D4K M bulldozer is equipped with a 6-way blade that has a front width of 3.15 meters.
