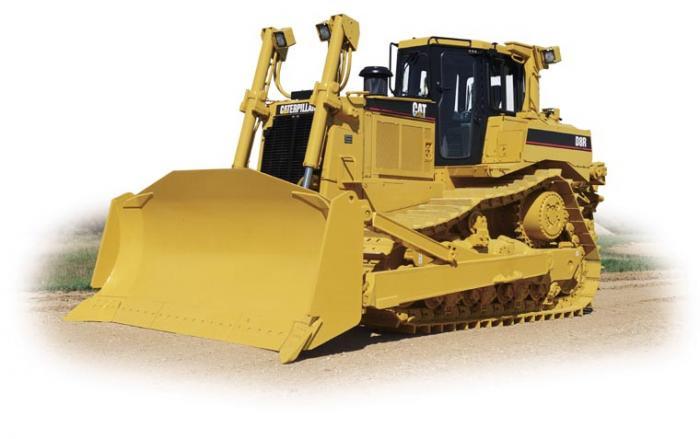

Caterpillar D 8 R II Specifications & Technical Data (2001-2004)

Technical specs - D 8 R II Caterpillar

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 38.5 t

Transport length: 4.55 m

Transport width: 3.05 m

Transport height: 3.5 m

Blade type: U

Soil pressure: 0.92 kg/cm²

Track width: 560 mm

Travel speed: 10.6 km/h

Front blade width: 4.98 m

Model series: D

Engine manuf.: Caterpillar

Engine type: 3406 E

Engine power: 231 kW

Displacement: 14.6 l

Revolutions at max torque: 2200 rpm

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, aspiration...

More technical details, like: reverse travel speed, transmission type, max. drawbar pull, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, undercarriage type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, track rollers, raised sprocket, shoe - width, shoe - type, number of shoes, height - max, height - top of rops, ground clearance, width - over tracks, track length - on ground, length - no blade, blade, blade - width, blade - height, blade - dig depth, blade - lift clearance, blade - tilt, steering - differential, fuel tank, blade - capacity, ground bearing pressure, implement pump - flow, implement pump - pressure, operating weight are available in the full technical specs.

Basic model with ROPS cabin and corresponding blade

Special equipment

Diesel particulate filter: No
Rear ripper: No
Tilt device: No
Aircondition: Yes

Download specalog and datasheets (PDF)

D 8 R II Caterpillar Specification for Europe (RU)

Caterpillar D 8 R II FAQ

When was the Caterpillar D 8 R II manufactured?

The Caterpillar D 8 R II was manufactured from 2001 to 2004.

How much does the Caterpillar D 8 R II weigh?

The Caterpillar D 8 R II weighs 38.5 tons.

What are the transport dimensions of the Caterpillar D 8 R II bulldozer?

The Caterpillar D 8 R II has a transport length of 4.55 meters, a transport width of 3.05 meters, and a transport height of 3.5 meters.

What is the travel speed of the Caterpillar D 8 R II bulldozer?

The Caterpillar D 8 R II bulldozer has a travel speed of 10.6 km/h.

What are the undercarriage specifications of the Caterpillar D 8 R II bulldozer?

The Caterpillar D 8 R II bulldozer has a track width of 560 mm and a soil pressure of 0.92 kg/cmu00b2.

What are the specifications of the primary work tool on the Caterpillar D 8 R II bulldozer?

The Caterpillar D 8 R II bulldozer is equipped with a U-blade that has a front blade width of 4.98 meters.

How much is a Caterpillar D 8 R II Bulldozer (2001u20132004) worth?

The residual value of the Caterpillar D 8 R II depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
