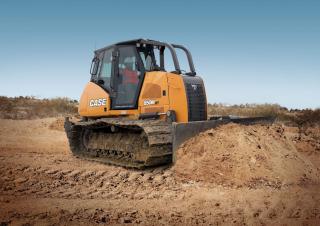

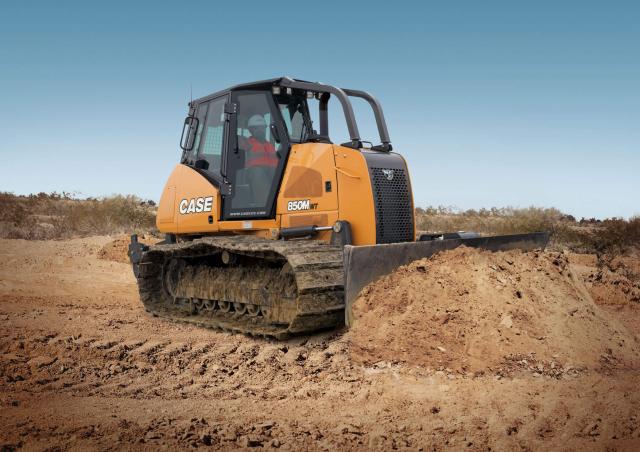

850M Case 850M Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - 850M Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 9.97 t
- Transport length
- 4.567 m
- Transport width
- 2.066 m
- Transport height
- 2.769 m
- Track width
- 508 mm
- Travel speed
- 8.7 km/h
- Reverse travel speed
- 8.7 km/h
- Front blade width
- 2.642 m
- max. Drawbar Pull
- 18.6 t
- Model series
- M
- Engine manuf.
- FPT
- Engine type
- F4HFE413P*A008
- Displacement
- 4.5 l
- No. of cylinders
- 4
- Emission level
- Tier 4 Final
More technical details, like: blade type, soil pressure, transmission type, engine power, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
