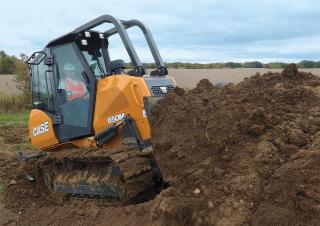

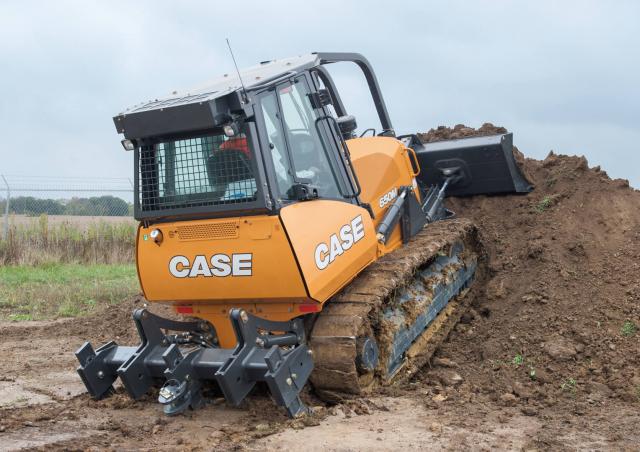

650M Case 650M Specifications & Technical Data (2021—2026)
.jpg)
.jpg)
Technical specs - 650M Case
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 7.168 t
- Transport length
- 4.18 m
- Transport width
- 1.829 m
- Transport height
- 2.648 m
- Track width
- 395 mm
- Travel speed
- 8 km/h
- Reverse travel speed
- 8 km/h
- Front blade width
- 2.286 m
- max. Drawbar Pull
- 17.729 t
- Model series
- M
- Engine manuf.
- FPT
- Engine type
- F5C F5HFL463D*G003
- Engine power
- 50.6 kW
- Displacement
- 3.4 l
- No. of cylinders
- 4
- Emission level
- Tier 4 Final
More technical details, like: blade type, soil pressure, transmission type, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.
Basic model with ROPS cabin and corresponding blade
Special equipment
- Diesel particulate filter
-
No
- Rear ripper
-
No
- Tilt device
-
No
- Aircondition
-
No
