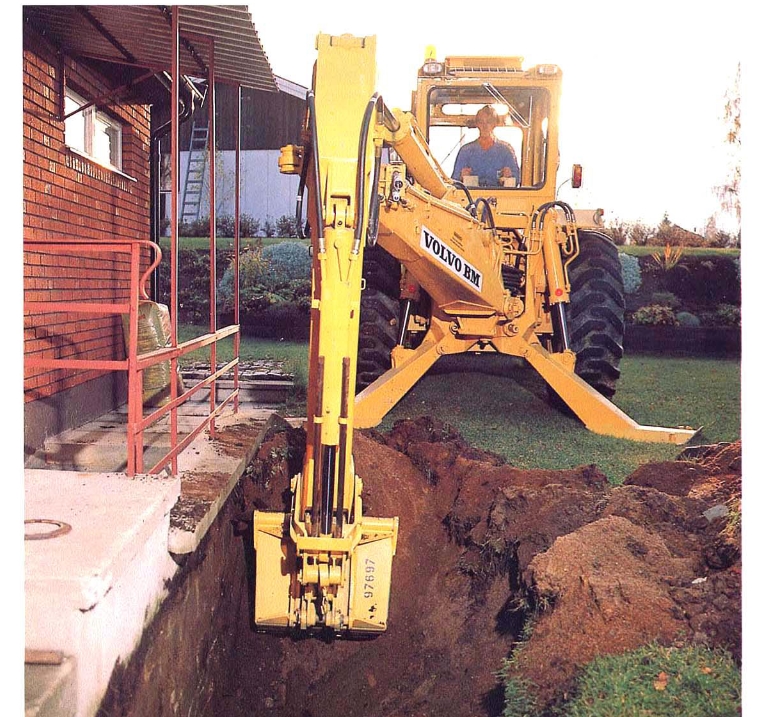

616B Volvo 616B Specifications & Technical Data (1976—1981)
Visit Volvo live at
.jpg){kind=logo}
Technical specs - 616B Volvo
Specification
Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.
- Weight
- 8.95 t
- Standard tyres
- F:12.5-20/10. R:18.4-34/14
- Bucket capacity
- 0.38 m³
- Drive
- A
- Transport length
- 8.06 m
- Transport height
- 2.86 m
- Tear-out force
- 49.03 kN
- Max. Reach horizontal
- 5.85 m
- Dredging depth
- 4.4 m
- Travel speed
- 30 km/h
- Engine manuf.
- Volvo
- Engine type
- BM D42
- Engine power
- 59 kW
- Displacement
- 4.2 l
- Revolutions at max torque
- 2300 rpm
- Max. torque
- 265 Nm
- No. of cylinders
- 4
- Cylinder bore x stroke
- 105.57x120 mm
More technical details, like: bucket width, bucket capacity backhoe, transport width, tear-out force backhoe, max. discharge height, model series, dimension lxwxh, emission level are available in the full technical specs.
Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket
Special equipment
- Outrigger stabilisers
-
No
- Clamshell
-
No
- Forklift utility
-
No
- Grabber
-
No
- Diesel particulate filter
-
No
- Aircondition
-
No
