10.23 E Venieri 10.23 E Specifications & Technical Data (2020—2026)

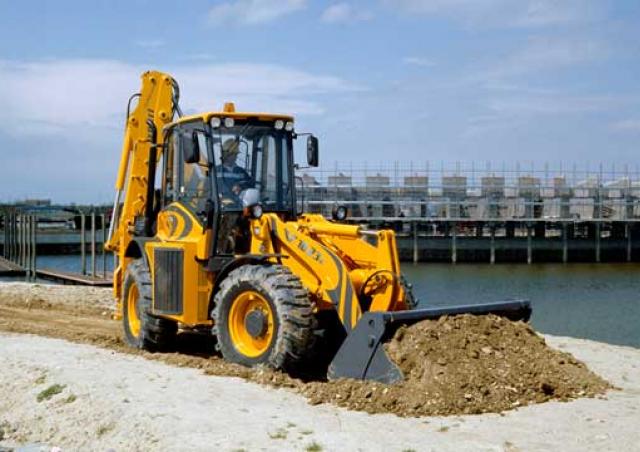

The Venieri 10.23E is a backhoe loader manufactured by Venieri since 2020. It has a weight of 9.92 tons and a transport length of …

The Venieri 10.23E is a backhoe loader manufactured by Venieri since 2020. It has a weight of 9.92 tons and a transport length of 6.15 meters. The bucket capacity is 1.3 cubic meters, with a tear-out force of 97 kilonewtons. It can dredge up to a depth of 5 meters and has a bucket width of 2.35 meters. The maximum discharge height is 3.6 meters, and it has a maximum reach horizontal of 7.1 meters. The backhoe loader has a transport width of 2.35 meters and a transport height of 3.7 meters. Additionally, it is equipped with air conditioning, a clamshell, a diesel particulate filter, a forklift utility, a grabber, and outrigger stabilizers.

10.23 E

Years of manufacture: 2020—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - 10.23 E Venieri

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 8.6 t

Standard tyres: 17.5Lx24

Bucket width: 2.35 m

Bucket capacity: 1.3 m³

Bucket capacity backhoe: 0.2 m³

Drive: A

Transport length: 6.15 m

Transport width: 2.35 m

Transport height: 3.7 m

Tear-out force: 105.9 kN

Tear-out force backhoe: 59.8 kN

Max. Reach horizontal: 7.1 m

Dredging depth: 5 m

Max. discharge height: 3.5 m

Travel speed: 40 km/h

Engine manuf.: Deutz

Engine type: TCD3.6 L4

Engine power: 78 kW

Displacement: 3.6 l

Revolutions at max torque: 2300 rpm

Max. torque: 410 Nm

No. of cylinders: 4

Cylinder bore x stroke: 98x120 mm

Emission level: V

More technical details, like: model series, dimension lxwxh are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: Yes
Diesel particulate filter: Yes
Aircondition: Yes

Venieri 10.23 E FAQ

When was the Venieri 10.23E manufactured?

The Venieri 10.23E was first produced in 2020.

How much does the Venieri 10.23E weigh?

The Venieri 10.23E weighs 8.6 tons.

What are the transport dimensions of the Venieri 10.23E backhoe loader?

The Venieri 10.23E has a transport length of 6.15 meters, a transport width of 2.35 meters, and a transport height of 3.7 meters.

What is the travel speed of the Venieri 10.23E backhoe loader?

The Venieri 10.23E backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the Venieri 10.23E backhoe loader?

The Venieri 10.23E backhoe loader has an all-wheel drive system and uses standard tyres sized 17.5Lx24.

What is the excavation performance of the Venieri 10.23E backhoe loader?

The Venieri 10.23E has a dredging depth of 5 meters and a maximum horizontal reach of 7.1 meters.

What are the tear-out forces of the Venieri 10.23E backhoe loader?

The Venieri 10.23E has a tear-out force of 105.9 kN and a backhoe tear-out force of 59.8 kN.

What is the maximum discharge height of the Venieri 10.23E?

The Venieri 10.23E has a maximum discharge height of 3.5 meters.

What are the specifications of the primary work tools on the Venieri 10.23E backhoe loader?

The Venieri 10.23E features a front loader bucket with a capacity of 1.3 cubic meters and a width of 2.35 meters, along with a backhoe bucket capacity of 0.2 cubic meters.
