PB 80 Palazzani PB 80 Specifications & Technical Data (2006—2017)

The Palazzani PB 80 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 8.4 tons and a transport l…

The Palazzani PB 80 is a backhoe loader manufactured by Palazzani from 2006 to 2017. It has a weight of 8.4 tons and a transport length of 5.82 meters. The bucket capacity is 1.1 cubic meters, with a tear-out force of 75 kilonewtons. It can dredge up to a depth of 4.8 meters and has a bucket width of 2.2 meters. The maximum discharge height is 5.25 meters, and it has a maximum reach horizontal of 5.3 meters. It has a transport width of 2.2 meters and a transport height of 3.5 meters. This construction machine is equipped with special equipment including a clamshell and outrigger stabilizers.

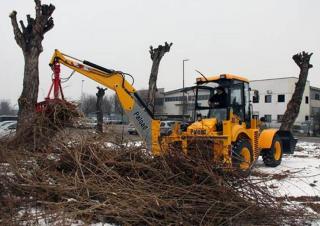

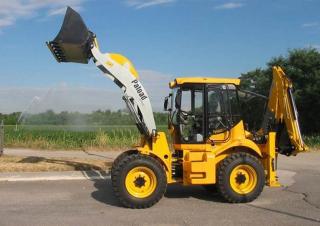

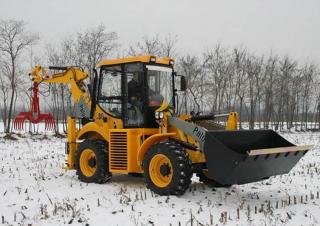

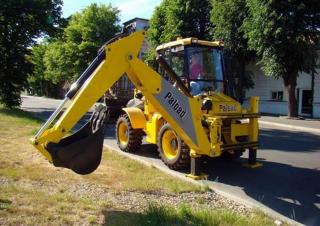

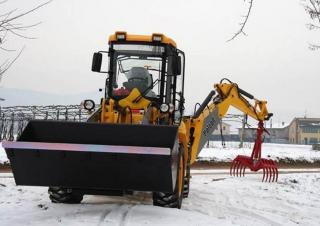

Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80
Backhoe Loaders Palazzani PB 80

Visit Palazzani live at

Technical specs - PB 80 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.4 t
Standard tyres
16/70x24
Bucket width
2.2 m
Bucket capacity
1.1 m³
Drive
A
Transport length
5.82 m
Transport width
2.2 m
Transport height
3.5 m
Tear-out force
75 kN
Max. Reach horizontal
5.3 m
Dredging depth
4.8 m
Max. discharge height
5.25 m
Model series
PB
Engine manuf.
Perkins
Engine type
1104C-E44T
Engine power
77 kW
Displacement
4.4 l
Revolutions at max torque
2400 rpm

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration...

More technical details, like: bucket capacity backhoe, tear-out force backhoe, travel speed, dimension lxwxh, max. torque, no. of cylinders, cylinder bore x stroke, emission level, backhoe type, engine manufacturer, engine model, aspiration, rated speed, engine output - net, engine output - gross, transmission type, number of travel speeds, drive - 2wd / 4wd, service brake type, length - roading, height - over cab, maximum height, width, ground clearance, width - standard shovel, stabiliser type, maximum dig depth - longest dipper, dig depth - sae, reach from slew pivot - non-extending dipper, loading height - non-extending dipper, dump height - general purpose, fuel tank, shovel capacity - standard general purpose, bucket tearout - non-extending dipper, dipper tearout - non-extending dipper, shovel breakout - general purpose, operating weight are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Palazzani PB 80 FAQ

When was the Palazzani PB 80 manufactured?

The Palazzani PB 80 was manufactured from 2006 to 2017.

How much does the Palazzani PB 80 backhoe loader weigh?

The Palazzani PB 80 backhoe loader weighs 8.4 tons.

What are the transport dimensions of the Palazzani PB 80 backhoe loader?

The Palazzani PB 80 has a transport length of 5.82 meters, a transport width of 2.2 meters, and a transport height of 3.5 meters.

What are the undercarriage specifications of the Palazzani PB 80 backhoe loader?

The Palazzani PB 80 features an all-wheel drive system and standard tyres sized 16/70x24.

What are the dredging depth and maximum horizontal reach of the Palazzani PB 80 backhoe loader?

The Palazzani PB 80 has a dredging depth of 4.8 meters and a maximum horizontal reach of 5.3 meters.

What is the tear-out force, the only available power-related specification, of the Palazzani PB 80 backhoe loader?

The Palazzani PB 80 backhoe loader has a tear-out force of 75 kN.

What is the material handling capacity of the Palazzani PB 80 in terms of discharge height?

The Palazzani PB 80 has a maximum discharge height of 5.25 meters.

What are the specifications of the primary work tool bucket on the Palazzani PB 80 backhoe loader?

The primary work tool bucket of the Palazzani PB 80 has a capacity of 1.1 cubic meters and a width of 2.2 meters.

How much is a Palazzani PB 80 Backhoe loader (2006u20132017) worth?

The residual value of the Palazzani PB 80 depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
