PB 180 Palazzani PB 180 Specifications & Technical Data (2018—2021)

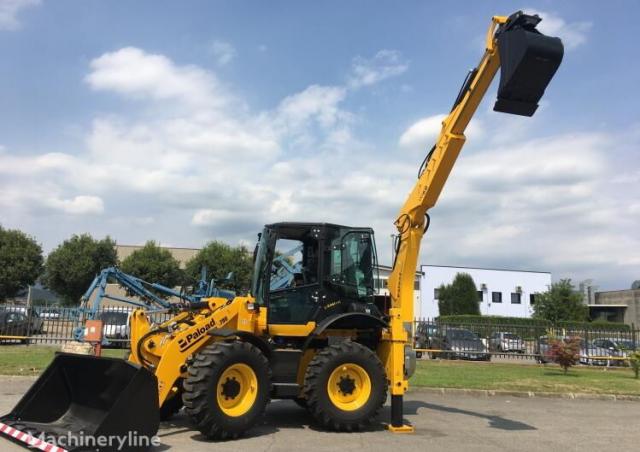

The Palazzani PB 180 is a backhoe loader manufactured by Palazzani from 2018 to 2021. It has a weight of 8.7 tons and a transport …

The Palazzani PB 180 is a backhoe loader manufactured by Palazzani from 2018 to 2021. It has a weight of 8.7 tons and a transport length of 5.874 meters. The bucket capacity is 1.2 cubic meters, with a tear-out force of 69 kilonewtons. It can dredge up to a depth of 4.6 meters and has a bucket width of 2.25 meters. The maximum discharge height is 6.405 meters, and it has a travel speed of 40 kilometers per hour. The transport width is 2.25 meters, and the transport height is 3.82 meters. This construction machine is equipped with special equipment including a clamshell and outrigger stabilizers. The backhoe bucket capacity is 0.168 cubic meters.

Backhoe Loaders Palazzani PB 180

Technical specs - PB 180 Palazzani

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.7 t
Standard tyres
16/70-24
Bucket width
2.25 m
Bucket capacity
1.2 m³
Bucket capacity backhoe
0.168 m³
Drive
A
Transport length
5.874 m
Transport width
2.25 m
Transport height
3.82 m
Tear-out force
69 kN
Dredging depth
4.6 m
Max. discharge height
6.405 m
Travel speed
40 km/h
Model series
PB
Engine manuf.
Perkins
Engine type
854F-E34TA
Engine power
83 kW
Displacement
2.2 l
No. of cylinders
4
Emission level
Tier 4 f

More technical details, like: tear-out force backhoe, max. reach horizontal, dimension lxwxh, revolutions at max torque, max. torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Palazzani PB 180 FAQ

When was the Palazzani PB 180 manufactured?

The Palazzani PB 180 was manufactured from 2018 to 2021.

How much does the Palazzani PB 180 backhoe loader weigh?

The Palazzani PB 180 backhoe loader weighs 8.7 tons.

What are the transport dimensions of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 has a transport length of 5.87 meters, a transport width of 2.25 meters, and a transport height of 3.82 meters.

What is the travel speed of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 has a travel speed of 40 km/h.

What are the undercarriage specifications of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 backhoe loader has an all-wheel drive and is equipped with standard tyres sized 16/70-24.

What is the excavation depth capability of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 backhoe loader has a dredging depth of 4.6 meters.

What is the tear-out force of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 backhoe loader has a tear-out force of 69 kN.

What is the maximum discharge height of the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 backhoe loader has a maximum discharge height of 6.41 meters.

What are the specifications of the primary work tool on the Palazzani PB 180 backhoe loader?

The Palazzani PB 180 features a bucket with a capacity of 1.2 cubic meters and a width of 2.25 meters, along with a backhoe bucket capacity of 0.17 cubic meters.
