B110D TC SS New Holland B110D TC SS Specifications & Technical Data (2022—2026)

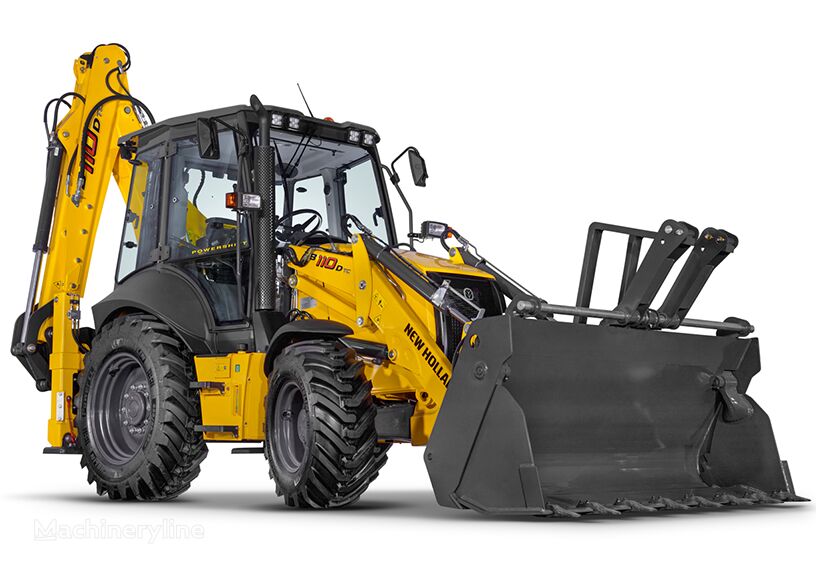

The New Holland B110D TC is a backhoe loader manufactured by New Holland since 2022. It comes equipped with special features such …

The New Holland B110D TC is a backhoe loader manufactured by New Holland since 2022. It comes equipped with special features such as air conditioning, a clamshell attachment, a forklift utility, and outrigger stabilizers.

B110D TC SS

Years of manufacture: 2022—2026

Buy & Rent
Valuate & Sell
Spare parts
Transport
News

Technical specs - B110D TC SS New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight: 9.23 t

Standard tyres: VR 16/70 R20 HR 16.9-30

Bucket width: 2.4 m

Bucket capacity: 1.15 m³

Drive: A

Transport length: 5.87 m

Transport width: 2.445 m

Transport height: 3.9 m

Tear-out force: 59.7 kN

Tear-out force backhoe: 36.25 kN

Max. Reach horizontal: 6.965 m

Dredging depth: 5.88 m

Max. discharge height: 2.665 m

Travel speed: 40 km/h

Model series: B

Engine manuf.: FPT

Engine type: F5

Engine power: 82 kW

Displacement: 3.6 l

Revolutions at max torque: 2200 rpm

Max. torque: 460 Nm

No. of cylinders: 4

Emission level: V

More technical details, like: bucket capacity backhoe, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers: Yes
Clamshell: Yes
Forklift utility: Yes
Grabber: No
Diesel particulate filter: No
Aircondition: Yes

New Holland B110D TC SS FAQ

When was the New Holland B110D TC manufactured?

The New Holland B110D TC was first produced in 2022.

How much does the New Holland B110D TC weigh?

The New Holland B110D TC weighs 9.23 tons.

What are the transport dimensions of the New Holland B110D TC backhoe loader?

The New Holland B110D TC has a transport length of 5.87 meters, a transport width of 2.445 meters, and a transport height of 3.9 meters.

What is the travel speed of the New Holland B110D TC backhoe loader?

The New Holland B110D TC backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the New Holland B110D TC backhoe loader?

The New Holland B110D TC features an all-wheel drive and standard tyres sized Front: 16/70 R20 and Rear: 16.9-30.

What is the excavation performance of the New Holland B110D TC backhoe loader?

The New Holland B110D TC has a dredging depth of 5.88 meters and a maximum horizontal reach of 6.965 meters.

What are the tear-out forces of the New Holland B110D TC backhoe loader?

The New Holland B110D TC has a tear-out force of 59.7 kN and a backhoe tear-out force of 36.25 kN.

What is the maximum discharge height of the New Holland B110D TC backhoe loader?

The New Holland B110D TC backhoe loader has a maximum discharge height of 2.665 meters.

What are the specifications of the bucket on the New Holland B110D TC backhoe loader?

The bucket of the New Holland B110D TC has a capacity of 1.15 cubic meters and a width of 2.4 meters.

How much is a New Holland B110D TC Backhoe loader (2022u20132025) worth?

The residual value of the New Holland B110D TC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
