B100D TC SS New Holland B100D TC SS Specifications & Technical Data (2022—2026)

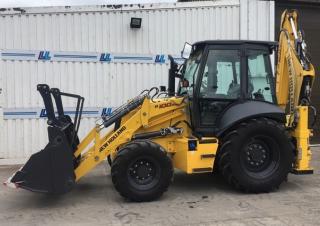

The New Holland B100D TC is a backhoe loader manufactured since 2022. It is equipped with special features including air condition…

The New Holland B100D TC is a backhoe loader manufactured since 2022. It is equipped with special features including air conditioning, a clamshell attachment, a forklift utility, and outrigger stabilizers.

Backhoe Loaders New Holland B100D TC SS

Technical specs - B100D TC SS New Holland

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.23 t
Standard tyres
VR 16/70 R20 HR 16.9-30
Bucket width
2.4 m
Bucket capacity
1.15 m³
Drive
A
Transport length
5.87 m
Transport width
2.445 m
Transport height
3.9 m
Tear-out force
59.7 kN
Tear-out force backhoe
36.25 kN
Max. Reach horizontal
6.965 m
Dredging depth
5.88 m
Max. discharge height
2.665 m
Travel speed
40 km/h
Model series
B
Engine manuf.
FPT
Engine type
F5
Engine power
72 kW
Displacement
3.6 l
Revolutions at max torque
2200 rpm
Max. torque
453 Nm
No. of cylinders
4
Emission level
V

More technical details, like: bucket capacity backhoe, dimension lxwxh, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
Yes
Forklift utility
Yes
Grabber
No
Diesel particulate filter
No
Aircondition
Yes

New Holland B100D TC SS FAQ

When was the New Holland B100D TC manufactured?

The New Holland B100D TC was first produced in 2022.

How much does the New Holland B100D TC weigh?

The New Holland B100D TC weighs 9.23 tons.

What are the transport dimensions of the New Holland B100D TC backhoe loader?

The New Holland B100D TC has a transport length of 5.87 meters, a transport width of 2.445 meters, and a transport height of 3.9 meters.

What is the travel speed of the New Holland B100D TC backhoe loader?

The New Holland B100D TC backhoe loader has a travel speed of 40 km/h.

What are the undercarriage specifications of the New Holland B100D TC backhoe loader?

The New Holland B100D TC has an all-wheel drive system and standard tyres sized Front: 16/70 R20 and Rear: 16.9-30.

What are the excavation specifications of the New Holland B100D TC backhoe loader?

The New Holland B100D TC has a dredging depth of 5.88 meters and a maximum horizontal reach of 6.965 meters.

What are the power ratings of the New Holland B100D TC backhoe loader?

The New Holland B100D TC has a tear-out force of 59.7 kN and a backhoe tear-out force of 36.25 kN.

What is the material handling capacity of the New Holland B100D TC in terms of maximum discharge height?

The New Holland B100D TC has a maximum discharge height of 2.665 meters.

What are the specifications of the primary work tool bucket on the New Holland B100D TC?

The primary work tool bucket of the New Holland B100D TC has a capacity of 1.15 cubic meters and a width of 2.4 meters.

How much is a New Holland B100D TC Backhoe loader (2022u20132025) worth?

The residual value of the New Holland B100D TC depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
