777A Liugong 777A Specifications & Technical Data (2017—2026)

The Liugong 777A is a backhoe loader manufactured since 2017. It has a weight of 8.4 tons and a transport length of 5.785 meters. …

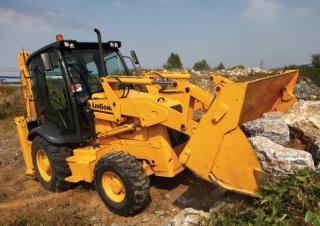

The Liugong 777A is a backhoe loader manufactured since 2017. It has a weight of 8.4 tons and a transport length of 5.785 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 59.6 kN. It can dredge up to a depth of 4.44 meters and has a bucket width of 2.26 meters. The maximum discharge height is 0.713 meters, and it can reach a maximum horizontal distance of 5.443 meters. The travel speed is 36 km/h. The transport width is 2.28 meters, and the transport height is 2.876 meters. Additionally, it has a backhoe bucket capacity of 0.25 cubic meters and a tear-out force of 58.2 kN.

Backhoe Loaders Liugong 777A

Visit Liugong live at

Technical specs - 777A Liugong

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.4 t
Standard tyres
F 14-17.5NHS-14RP T/R 19.5 L-24 14PR T
Bucket width
2.26 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.25 m³
Transport length
5.785 m
Transport width
2.28 m
Transport height
2.876 m
Tear-out force
59.6 kN
Tear-out force backhoe
58.2 kN
Max. Reach horizontal
5.443 m
Dredging depth
4.44 m
Max. discharge height
0.713 m
Travel speed
36 km/h
Model series
A
Engine manuf.
Perkins
Engine type
1104D-44T
Engine power
72 kW
Displacement
4.4 l
Revolutions at max torque
1400 rpm
Max. torque
392 Nm
Emission level
Tier 3/EU IIIA

More technical details, like: drive, dimension lxwxh, no. of cylinders, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

Liugong 777A FAQ

When was the Liugong 777A backhoe loader manufactured?

The Liugong 777A backhoe loader was first produced in 2017.

How much does the Liugong 777A backhoe loader weigh?

The Liugong 777A backhoe loader weighs 8.4 tons.

What are the transport dimensions of the Liugong 777A backhoe loader?

The Liugong 777A has a transport length of 5.79 meters, a transport width of 2.28 meters, and a transport height of 2.88 meters.

What is the travel speed of the Liugong 777A backhoe loader?

The Liugong 777A backhoe loader has a travel speed of 36 km/h.

What are the undercarriage tyre specifications of the Liugong 777A backhoe loader?

The Liugong 777A is equipped with standard tyres: Front tyres are 14-17.5NHS-14RP T and Rear tyres are 19.5 L-24 14PR T.

What are the dredging depth and maximum horizontal reach of the Liugong 777A backhoe loader?

The Liugong 777A backhoe loader has a dredging depth of 4.44 meters and a maximum horizontal reach of 5.443 meters.

What are the tear-out forces of the Liugong 777A backhoe loader?

The Liugong 777A has a tear-out force of 59.6 kN and a backhoe tear-out force of 58.2 kN.

What is the material handling capacity of the Liugong 777A in terms of discharge height?

The Liugong 777A has a maximum discharge height of 0.71 meters.

What are the bucket specifications of the Liugong 777A backhoe loader?

The Liugong 777A has a front bucket capacity of 1 cubic meter, a bucket width of 2.26 meters, and a backhoe bucket capacity of 0.25 cubic meters.

How much is a Liugong 777A Backhoe loader (2017u20132025) worth?

The residual value of the Liugong 777A depends on the machine's individual parameters. Visit the LECTURA Valuation to check it.
