410 K TC John Deere Construction 410 K TC Specifications & Technical Data (2012—2021)

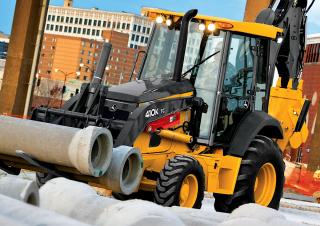

The John Deere Construction 410 K TC is a backhoe loader that has been manufactured from 2012 to 2021. It has a weight of 9.296 to…

The John Deere Construction 410 K TC is a backhoe loader that has been manufactured from 2012 to 2021. It has a weight of 9.296 tons and a transport length of 7.46 meters. The bucket capacity is 1.15 cubic meters, with a tear-out force of 47.3 kN. It can dredge up to a depth of 6.07 meters and has a bucket width of 2.388 meters. The maximum discharge height is 4.72 meters, and it has a maximum reach horizontal of 8.33 meters. The travel speed of this machine is 40 km/h. It has a transport width of 2.18 meters and a transport height of 2.82 meters. The backhoe has a bucket capacity of 0.21 cubic meters and a tear-out force of 68.6 kN. Special equipment includes a diesel particulate filter, forklift utility, and outrigger stabilizers.

Backhoe Loaders John Deere Construction 410 K TC

Technical specs - 410 K TC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
9.296 t
Standard tyres
F: 12.5/80-18I-3 R: 19.5L-24 R-4
Bucket width
2.388 m
Bucket capacity
1.15 m³
Bucket capacity backhoe
0.21 m³
Transport length
7.46 m
Transport width
2.18 m
Transport height
2.82 m
Tear-out force
47.3 kN
Tear-out force backhoe
68.6 kN
Max. Reach horizontal
8.33 m
Dredging depth
6.07 m
Max. discharge height
4.72 m
Travel speed
40 km/h
Model series
K
Engine manuf.
John Deere
Engine type
4045HT063
Engine power
79 kW
Displacement
4.5 l
Max. torque
429 Nm
No. of cylinders
4
Emission level
EPA Interm Tier 4/EU Stage IIIB

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

John Deere Construction 410 K TC FAQ

When was the John Deere Construction 410 K TC manufactured?

The John Deere Construction 410 K TC was manufactured from 2012 to 2021.

How much does the John Deere Construction 410 K TC weigh?

The John Deere Construction 410 K TC weighs 9.3 tons.

What are the transport dimensions of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC has a transport length of 7.46 meters, a transport width of 2.18 meters, and a transport height of 2.82 meters.

What is the travel speed of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC has a travel speed of 40 km/h.

What are the undercarriage specifications of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC is equipped with standard tyres: Front tyres are 12.5/80-18I-3 and Rear tyres are 19.5L-24 R-4.

What are the excavation performance specifications of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC has a dredging depth of 6.07 meters and a maximum horizontal reach of 8.33 meters.

What are the tear-out forces of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC has a tear-out force of 47.3 kN and a backhoe tear-out force of 68.6 kN.

What is the material handling capacity of the John Deere Construction 410 K TC in terms of maximum discharge height?

The John Deere Construction 410 K TC has a maximum discharge height of 4.72 meters.

What are the primary work tool specifications of the John Deere Construction 410 K TC backhoe loader?

The John Deere Construction 410 K TC has a bucket capacity of 1.15 cubic meters, a bucket width of 2.39 meters, and a backhoe bucket capacity of 0.21 cubic meters.
