410 J TMC John Deere Construction 410 J TMC Specifications & Technical Data (2007—2021)

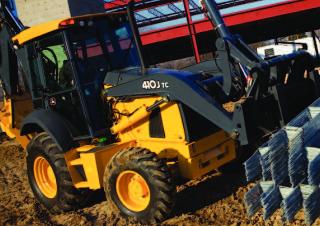

The John Deere Construction 410 J TMC is a backhoe loader manufactured by John Deere Construction from 2007 to 2021. It has a weig…

The John Deere Construction 410 J TMC is a backhoe loader manufactured by John Deere Construction from 2007 to 2021. It has a weight of 8.61 tons and a transport length of 7.29 meters. The bucket capacity is 0.96 cubic meters, with a tear-out force of 45.4 kilonewtons. It can dredge up to a depth of 6.1 meters and has a bucket width of 2.184 meters. The maximum discharge height is 4.72 meters, and it has a maximum reach horizontal of 8.33 meters. The travel speed of this backhoe loader is 37.4 kilometers per hour. It has a transport width of 2.18 meters and a transport height of 2.82 meters. Additionally, it is equipped with special equipment including a diesel particulate filter, forklift utility, and outrigger stabilizers. The backhoe bucket capacity is 0.21 cubic meters, and it has a tear-out force of 65.8 kilonewtons.

Backhoe Loaders John Deere Construction 410 J TMC

Technical specs - 410 J TMC John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
8.61 t
Standard tyres
F: 11L-16 SL F-3 R: 19.5L-24 R-4
Bucket width
2.184 m
Bucket capacity
0.96 m³
Bucket capacity backhoe
0.21 m³
Transport length
7.29 m
Transport width
2.18 m
Transport height
2.82 m
Tear-out force
45.4 kN
Tear-out force backhoe
65.8 kN
Max. Reach horizontal
8.33 m
Dredging depth
6.1 m
Max. discharge height
4.72 m
Travel speed
37.4 km/h
Model series
J
Engine manuf.
John Deere
Engine type
4045T
Engine power
72 kW
Displacement
4.524 l
Max. torque
397 Nm
No. of cylinders
4

More technical details, like: drive, dimension lxwxh, revolutions at max torque, cylinder bore x stroke, emission level are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
Yes
Grabber
No
Diesel particulate filter
Yes
Aircondition
No

Download datasheets (PDF)

John Deere Construction 410 J TMC FAQ

When was the John Deere Construction 410 J TMC manufactured?

The John Deere Construction 410 J TMC was manufactured from 2007 to 2021.

How much does the John Deere Construction 410 J TMC weigh?

The John Deere Construction 410 J TMC weighs 8.61 tons.

What are the transport dimensions of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a transport length of 7.29 meters, a transport width of 2.18 meters, and a transport height of 2.82 meters.

What is the travel speed of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a travel speed of 37.4 km/h.

What are the undercarriage specifications of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC is equipped with standard tyres sized Front: 11L-16 SL F-3 and Rear: 19.5L-24 R-4.

What are the excavation performance specifications of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a dredging depth of 6.1 meters and a maximum horizontal reach of 8.33 meters.

What are the tear-out forces of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a tear-out force of 45.4 kN and a backhoe tear-out force of 65.8 kN.

What is the maximum discharge height for material handling of the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a maximum discharge height of 4.72 meters for material handling.

What are the specifications of the primary work tool on the John Deere Construction 410 J TMC backhoe loader?

The John Deere Construction 410 J TMC has a bucket capacity of 0.96 cubic meters, a bucket width of 2.18 meters, and a backhoe bucket capacity of 0.21 cubic meters.
