315 John Deere Construction 315 Specifications & Technical Data (2007—2021)

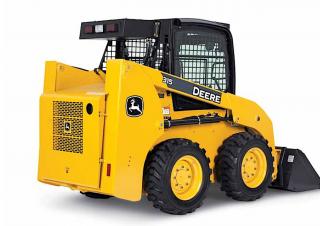

The John Deere Construction 315 is a skid steer loader manufactured by John Deere Construction from 2007 to 2021. It has a weight …

The John Deere Construction 315 is a skid steer loader manufactured by John Deere Construction from 2007 to 2021. It has a weight of 2.361 tons and a transport length of 3.27 meters. The bucket width is 1.47 meters, and the maximum discharge height is 2.91 meters. It has a travel speed of 10.9 km/h, with a transport width of 1.5 meters and a transport height of 1.96 meters.

Backhoe Loaders John Deere Construction 315

Technical specs - 315 John Deere Construction

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
2.361 t
Standard tyres
10x16.5 8 PR
Bucket width
1.47 m
Transport length
3.27 m
Transport width
1.5 m
Transport height
1.96 m
Max. discharge height
2.91 m
Travel speed
10.9 km/h
Model series
300
Engine manuf.
John Deere
Engine type
4024T
Engine power
33.5 kW
Displacement
2.4 l
Max. torque
188 Nm
No. of cylinders
4
Emission level
EPA interm Tier 4

More technical details, like: bucket capacity, bucket capacity backhoe, drive, tear-out force, tear-out force backhoe, max. reach horizontal, dredging depth, dimension lxwxh, revolutions at max torque, cylinder bore x stroke are available in the full technical specs.

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
No
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

John Deere Construction 315 FAQ

When was the John Deere Construction 315 manufactured?

The John Deere Construction 315 was manufactured from 2007 to 2021.

How much does the John Deere Construction 315 backhoe loader weigh?

The John Deere Construction 315 backhoe loader weighs 2.36 tons.

What are the transport dimensions of the John Deere Construction 315 backhoe loader?

The John Deere Construction 315 has a transport length of 3.27 meters, a transport width of 1.5 meters, and a transport height of 1.96 meters.

What is the travel speed of the John Deere Construction 315 backhoe loader?

The John Deere Construction 315 backhoe loader has a travel speed of 10.9 km/h.

What are the undercarriage specifications of the John Deere Construction 315 backhoe loader?

The John Deere Construction 315 backhoe loader comes with standard tyres sized 10x16.5 8 PR.

What is the maximum discharge height of the John Deere Construction 315 backhoe loader?

The John Deere Construction 315 backhoe loader has a maximum discharge height of 2.91 meters.

What is the bucket width of the John Deere Construction 315 backhoe loader?

The bucket width of the John Deere Construction 315 backhoe loader is 1.47 meters.
