5CX JCB 5CX Specifications & Technical Data (2014—2017)

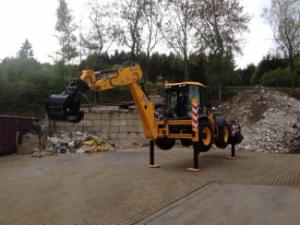

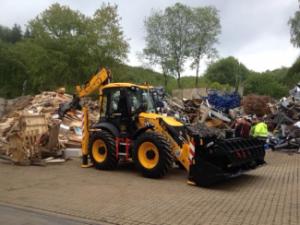

The JCB 5CX is a backhoe loader manufactured by JCB from 2014 to 2017. It has a weight of 10.6 tons and a transport length of 6.74…

The JCB 5CX is a backhoe loader manufactured by JCB from 2014 to 2017. It has a weight of 10.6 tons and a transport length of 6.74 meters. The bucket capacity is 1 cubic meter, with a tear-out force of 61.06 kilonewtons. It can dredge up to a depth of 6.51 meters and has a bucket width of 2.33 meters. The maximum discharge height is 2.69 meters, and it has a maximum reach horizontal of 7.1 meters. The travel speed of this backhoe loader is 38.1 kilometers per hour. It has a transport width of 2.36 meters and a transport height of 3.97 meters. Additionally, it is equipped with outrigger stabilizers. The backhoe bucket capacity is 0.26 cubic meters, and it has a tear-out force of 61.09 kilonewtons.

Visit JCB live at

Technical specs - 5CX JCB

Specification

Notice: Every data listed is verified by LECTURA Specs team experts. However, incomplete data and mistakes might occur. Contact our team with any change suggestion.

Weight
10.6 t
Standard tyres
440/80-28
Bucket width
2.33 m
Bucket capacity
1 m³
Bucket capacity backhoe
0.26 m³
Drive
A
Transport length
6.74 m
Transport width
2.36 m
Transport height
3.97 m
Tear-out force
61.06 kN
Tear-out force backhoe
61.09 kN
Max. Reach horizontal
7.1 m
Dredging depth
6.51 m
Max. discharge height
2.69 m
Travel speed
38.1 km/h
Model series
CX
Engine manuf.
JCB
Engine type
444
Engine power
81 kW
Displacement
4.4 l
Revolutions at max torque
1300 rpm
Max. torque
516 Nm
No. of cylinders
4
Cylinder bore x stroke
103x132 mm
Emission level
IIIB/T4i

Basic model incl. ROPS cabin, standard shovel, rear with backhoe and standard bucket

Special equipment

Outrigger stabilisers
Yes
Clamshell
No
Forklift utility
No
Grabber
No
Diesel particulate filter
No
Aircondition
No

Download datasheets (PDF)

JCB 5CX FAQ

When was the JCB 5CX backhoe loader manufactured?

The JCB 5CX backhoe loader was manufactured from 2014 to 2017.

How much does the JCB 5CX backhoe loader weigh?

The JCB 5CX backhoe loader weighs 10.6 tons.

What are the transport dimensions of the JCB 5CX backhoe loader?

The JCB 5CX backhoe loader has a transport length of 6.74 meters, a transport width of 2.36 meters, and a transport height of 3.97 meters.

What is the travel speed of the JCB 5CX backhoe loader?

The JCB 5CX backhoe loader has a travel speed of 38.1 km/h.

What are the undercarriage specifications of the JCB 5CX backhoe loader?

The JCB 5CX backhoe loader has an all-wheel drive system and uses standard tyres sized 440/80-28.

What is the excavation performance of the JCB 5CX backhoe loader?

The JCB 5CX backhoe loader has a dredging depth of 6.51 meters and a maximum horizontal reach of 7.1 meters.

What are the tear-out forces of the JCB 5CX backhoe loader?

The JCB 5CX has a tear-out force of 61.06 kN and a tear-out force for the backhoe of 61.09 kN.

What is the maximum discharge height of the JCB 5CX?

The JCB 5CX has a maximum discharge height of 2.69 meters.

What are the specifications of the primary work tool on the JCB 5CX backhoe loader?

The JCB 5CX features a bucket with a capacity of 1 cubic meter and a width of 2.33 meters, along with a backhoe bucket capacity of 0.26 cubic meters.
